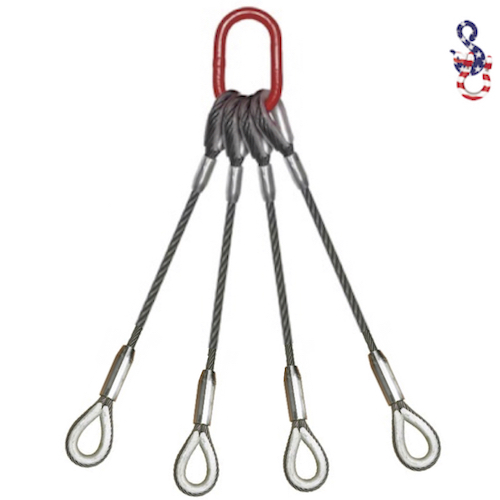

3/8″ X 20′ – 4 Leg Wire Rope Sling w/Thimble Eyes & No Hooks
3/8″ IWRC EIPS Wire Rope Bridle Sling X 20 Feet, 4 Legs w/Thimble Eyes & w/o Hooks

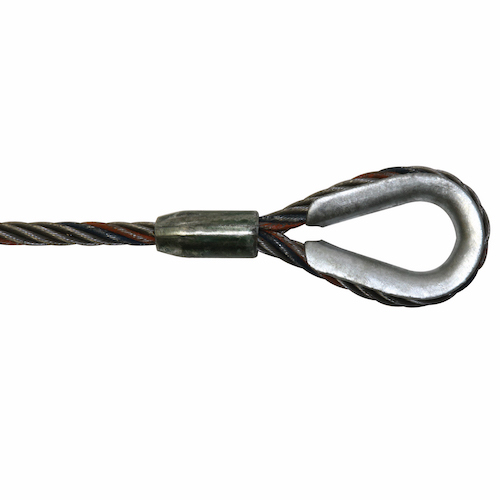

The 3/8″ x 20′ – 4 leg wire rope sling with thimbled eyes allows for additional versatility over a single leg sling. Using multiple legs helps to balance your load by distributing weight more evenly. It also helps with control during lift where multiple pick points are needed. A thimbled eye at each end is similar to a traditional eye & eye sling but fitted with protective thimbles. A thimble protects the eye from pressure, wear, and tear, to extend the working life of the sling. Thimbled eyes are durable and great for suspending from a shackle or hook. Please note that thimbled eyes will not pass through one another. You need to use a shackle or similar device to create a choker hitch. These are the best option for rigging and lifting applications that require heavy-duty slings that are abrasion-resistant but still flexible. Wire rope slings are popular where a variety of heavy loads and rugged conditions exist like construction, automotive, oil & gas, steel mills, forging facilities and general manufacturing industries.

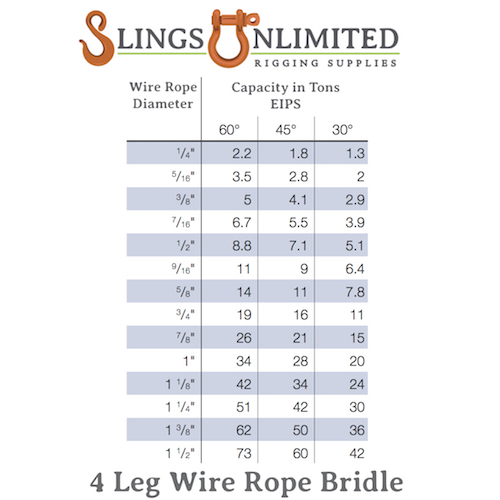

Working Load Limit and Safety
The Design Factor for wire rope slings is a 5:1 ratio, meaning the breaking strength of the sling is five times higher than the rated Working Load Limit (W.L.L). Per the Wire Rope Users Manual, a design factor is necessary to allow for conditions such as wear, abrasion, damage, and variations in loads which are not readily apparent. Although wire rope slings have a design factor, the user should never exceed the rated Working Load Limit.
All of our 4 leg eye and eye slings include an attached metal tag displaying capacity, care, and instruction
Slings Unlimited strives to manufacture and sell the highest quality rigging and safety gear. However, use of the gear is dangerous if not used correctly by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. Slings Unlimited disclaims any liability resulting from the misuse of its rigging and safety gear.
