5/8″ X 20 Feet, Grade 100, SGG

This 5/8″ x 20 ft Grade 100 single leg chain sling comes with grab hooks on both ends. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 5/8″ Grade 100 alloy chain (American-made)
• Reach (length): 20 ft
• Legs: 1
• Config code: SGG

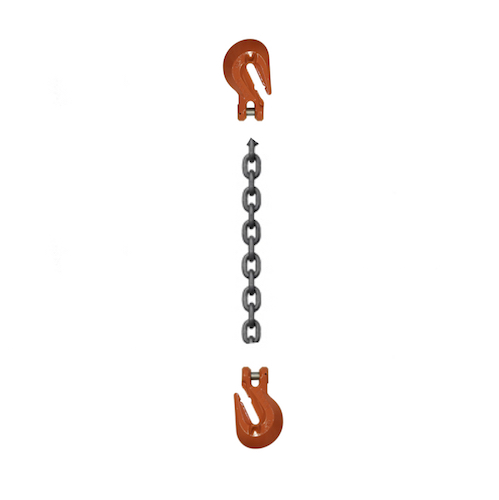

• Bottom fittings: Grab hook (both ends)
• Adjusters: None

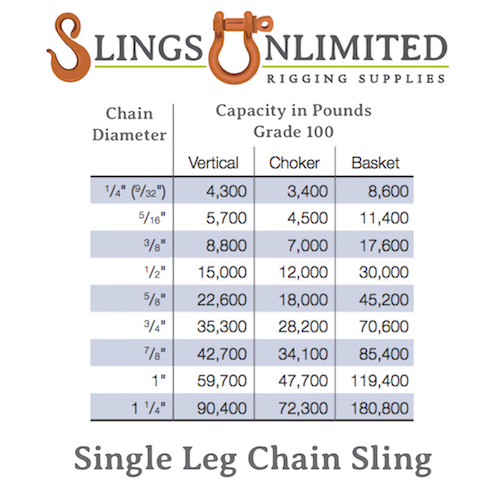

• WLL, vertical hitch: 22,600 lbs
• WLL, choker hitch: 18,000 lbs
• WLL, basket hitch: 45,200 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

A single leg works in vertical, choker and basket hitches; the ratings for each hitch are listed above. Grab hooks hold a single chain link, so you can shorten a leg or choke around the load.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
