Description

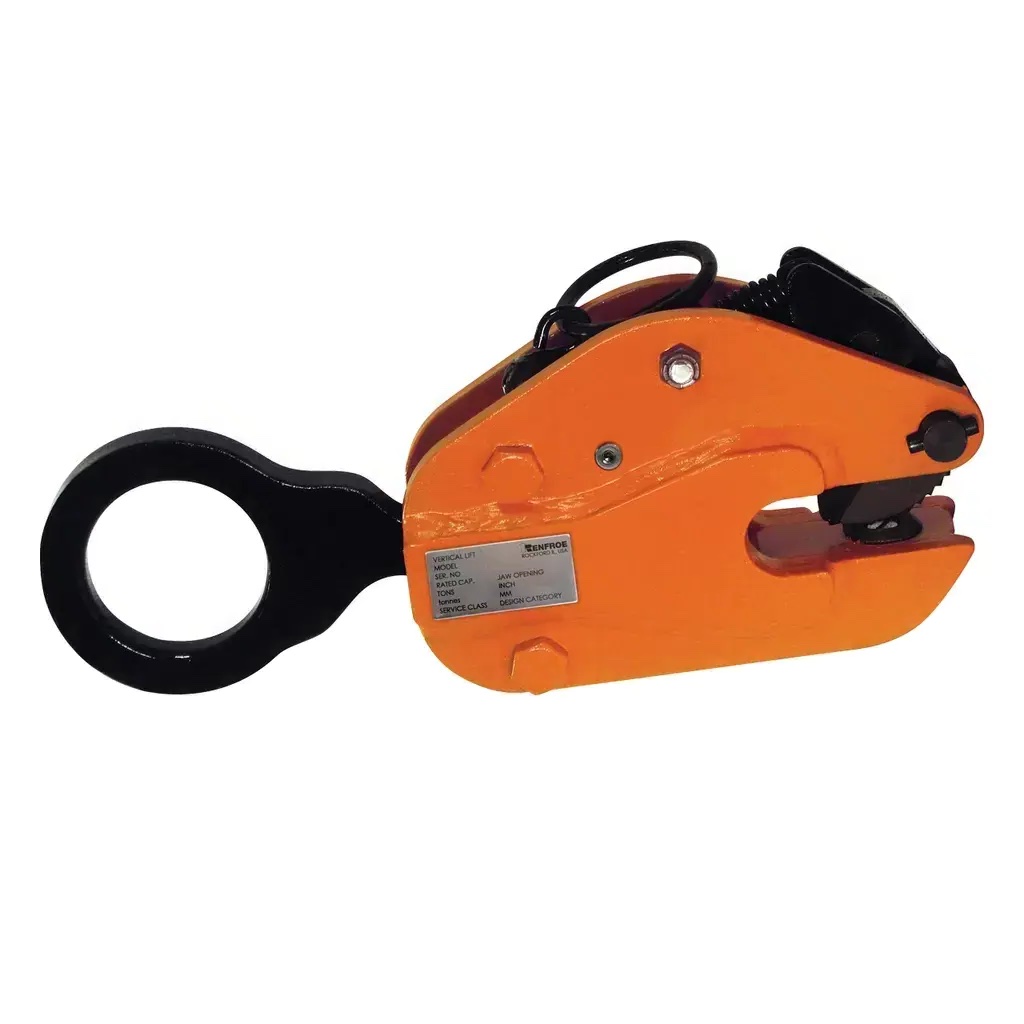

Renfroe Model FR-02.00-A Plate Clamp
The Renfroe Model FR 02.00-A plate clamp is a vertical lifting clamp. Designed for lifting and handling steel plates and flat materials in an upright position. With a 2-ton capacity (02.00 tons), it’s built for medium-to-heavy-duty tasks in industries like metal fabrication, construction, and shipbuilding.
Its primary uses include:
-
Lifting Heavier Steel Plates: This clamp grips a single plate by its edge, allowing safe vertical lifting with a crane or hoist. It’s well-suited for handling plates up to its 2-ton weight limit.
- Secure and Easy Attachment: It includes a “Lock Closed” feature, keeping the jaws shut when not loaded. Makes it safer and easier to attach to a plate without slippage during setup.
- Robust Medium-Duty Performance: The 02.00-A offers a sturdy yet manageable design. Perfect for lifting tasks that exceed lighter models (like the 1-ton version) but don’t require the heaviest clamps, enhancing efficiency in demanding environments.
- Vertical Positioning: Built specifically for vertical lifts, it ensures plates remain vertically aligned during movement or positioning, aiding in accurate placement.
The Renfroe Model FR 02.00-A handles plates from 0 to 1″ inch thick. It complies with standards like ANSI B30.20, ensuring safety when used correctly within its capacity.
These clamps ship directly from the manufacturer to you. We’re here to help! If you can’t find a plate clamp for your specific needs, visit our Contact Us page and let us know!
