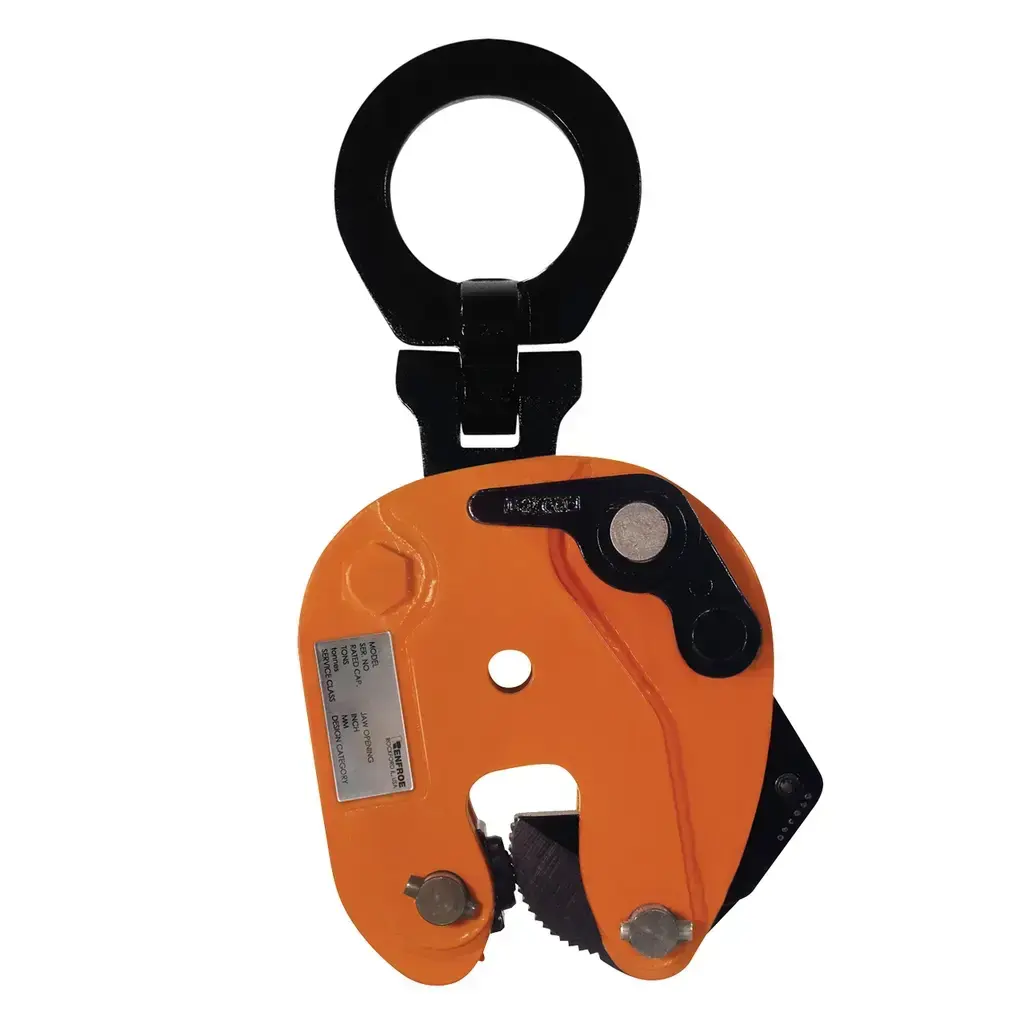

Renfroe Model JPA-02.00-A Plate Clamp
The Renfroe Model JPA-02.00-A Plate Clamp is a 2 ton capacity vertical lifting clamp. Designed for handling steel plates and other flat materials. Manufactured by J.C. Renfroe & Sons, Inc., this specific model has a capacity of 2 tons (4,000 lbs) and is engineered to lift and rotate a single plate or member from a horizontal to a vertical position—or vice versa—through a 180-degree arc. It’s commonly used in industrial settings like construction, manufacturing, and steel fabrication where precise and safe material handling is required. Incorporates a push button auxiliary lock. Permits side loading of lifting shackle to 90° by de-rating of clamp’s rated capacity.
Features include:
-
Push-Button Auxiliary Lock: Prevents accidental release during lifting or turning.
-
Pivoting Shackle: Allows side loading at angles:
- 100% of rated capacity (4,000 lb) from vertical to 30 degrees.
- 75% (3,000 lb) from 30 to 45 degrees.
- 50% (2,000 lb) from 45 to 90 degrees.
-
Design: It’s a robust, manual clamp with a pivoting shackle for attachment to cranes or hoists.
The Renfroe Model JPA-02.00-A handles plates from 0 to 1 inch thick. Constructed from high-strength steel, it adheres to ANSI B30.20 safety standards, offering durability and ease of maintenance.
