Renfroe Model SCPA 00.50-A Screw Clamp

$1,030.00

Capacity in Pounds: 1/2  ton

Accommodates Plate Thickness: 0 – 3/4 inches

slings-promise

Share

FacebookTwitterEmail
SKU: 141-3SCPA005 Category: Brand:

Description

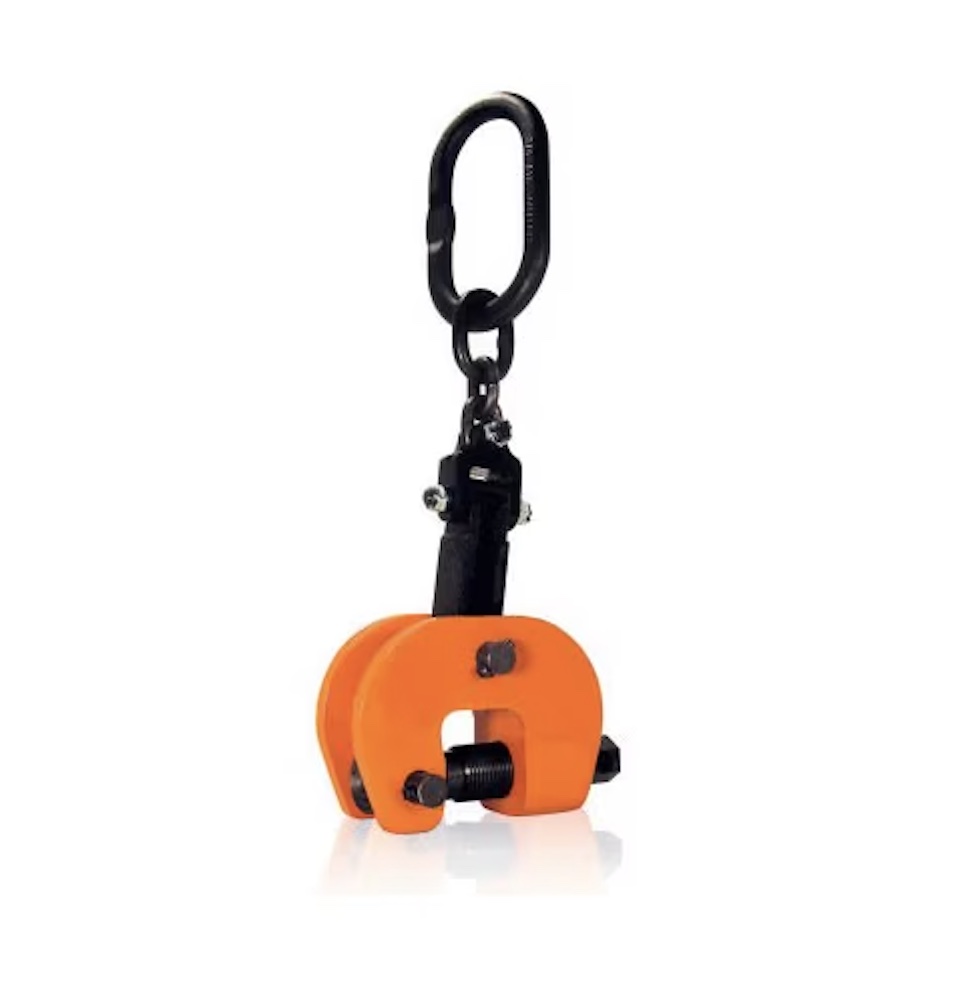

Renfroe Model SCPA 00.50-A Screw Clamp
The Renfroe Model SCPA 00.50-A Screw Clamp is a vertical lifting clamp with side-pull capability. These clamps are versatile. Capable of lifting and rotating a plate from horizontal to vertical (or vice versa) through a 180-degree arc. They are ideal for tasks like plate handling at rolling and forming machines.
Key features include a spring-loaded pivoting cam jaw that “cams in” when tension is applied to the lifting shackle, ensuring a secure grip on the plate. This mechanism allows the clamp to hold firm during lifts without additional locking features. The SCPA can also handle horizontal lifts when used in pairs or a tripod arrangement, adding flexibility for various rigging setups.
These clamps are practical for industrial applications requiring precise plate manipulation.  Their screw-type design means they’re not as fast to deploy as spring-loaded models like the JPA. They’re best suited for controlled environments where operators can manage the manual adjustment

Features  include:

  • Pivoting Shackle: Allows side loading at angles:

    • 100% of rated capacity (1,000 lb) from vertical to 30 degrees.
    • 75% (750 lb) from 30 to 45 degrees.
    • 50% (500 lb) from 45 to 90 degrees.
The Renfroe Model RSC 00.50-A Screw Clamp handles plates from 0 to 3/4 inches thick. Constructed from high-strength steel, it adheres to ANSI B30.20 safety standards, offering durability and ease of maintenance.

These clamps ship directly from the manufacturer to you.  We’re here to help! If you can’t find a plate clamp for your specific needs, visit our Contact Us page and let us know!

Additional information

Weight 8 lbs

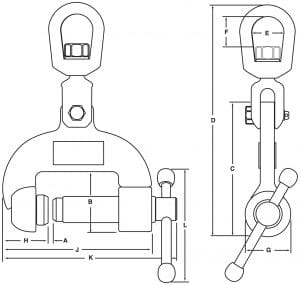

Dimensions 12.19 × 2.38 × 4.5 in
clamp-manufacturer

Clamp Lifting Angle

Clamp Capacity

Clamp Height

Clamp Length

Max Length
