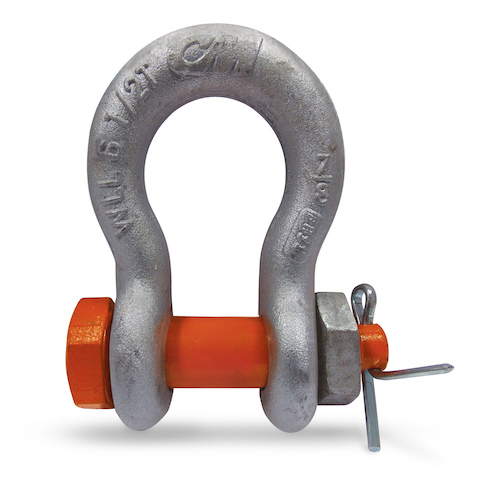

1-1/2″ CM Super Strong Alloy Bolt Type Anchor Shackle
CM Super Strong Bolt Type Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.
-Manufactured from technically advanced micro-alloy steel with optimal hardness for strength and ductility.
-Shackles show major deformation before failure
-Working load limit and traceability codes are shown as permanent markings on the body
-All shackles have alloy quenched and tempered pins
-Shackles meet dimensional requirements and exceed performance requirements of RR-C-271
-Special testing and certification is available if requested at the time of the order (additional charges apply)

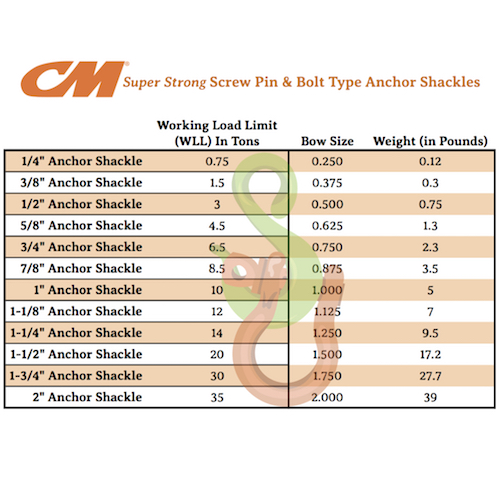

- Working Load Limit: 20 ton
- Product Weight: 17.2 lbs
- Manufacturer Name: Columbus McKinnon
- Returns: This item cannot be returned due to safety risks.
- Inside Height: 5.63″
- Inside Width: 3.50″
- Mouth Width: 2.41″
- Pin Size: 1.63″
- Shackle Size: 1-1/2″
