1-1/4″ Bolt Type Anchor Shackle – CM – 14 Ton Capacity

$178.14

Working Load Limit (WLL)
Capacity in Tons: 14 t

slings-promise

Share

FacebookTwitterEmail
SKU: 103-11120 Category:

Description

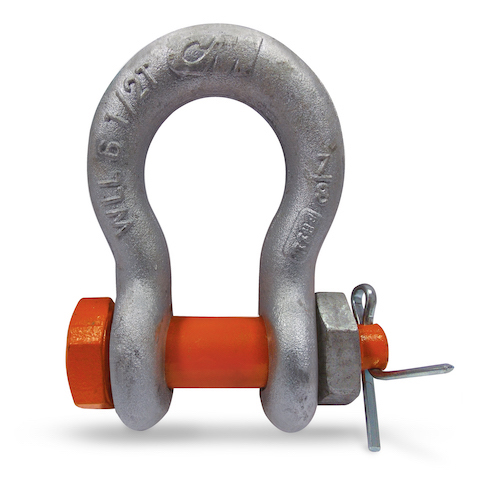

1-1/4″ CM Super Strong Alloy Bolt Type Anchor Shackle

CM Super Strong Bolt Type Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

-Manufactured from technically advanced micro-alloy steel with optimal hardness for strength and ductility.

-Shackles show major deformation before failure

-Working load limit and traceability codes are shown as permanent markings on the body

-All shackles have alloy quenched and tempered pins

-Shackles meet dimensional requirements and exceed performance requirements of RR-C-271

-Special testing and certification is available if requested at the time of the order (additional charges apply)

  • Working Load Limit: 14 ton
  • Product Weight: 9.5 lbs
  • Manufacturer Name: Columbus McKinnon
  • Returns: This item cannot be returned due to safety risks.
  • Inside Height: 4.63″
  • Inside Width: 2.88″
  • Mouth Width: 2.03″
  • Pin Size: 1.38″
  • Shackle Size: 1-1/4″
  • Galvanized

Additional information

Weight 9.5 lbs
