1-3/4″ Screw Pin Anchor Shackle (SPA) – CM – 30 Ton Capacity

$386.25

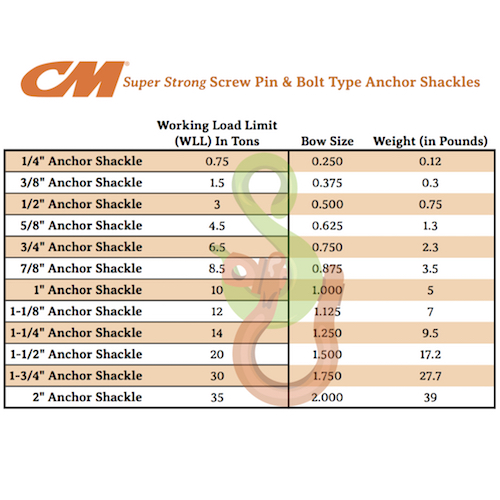

Working Load Limit (WLL)
Capacity in Tons: 30 t

slings-promise

Share

FacebookTwitterEmail
SKU: 100-11750 Category:

Description

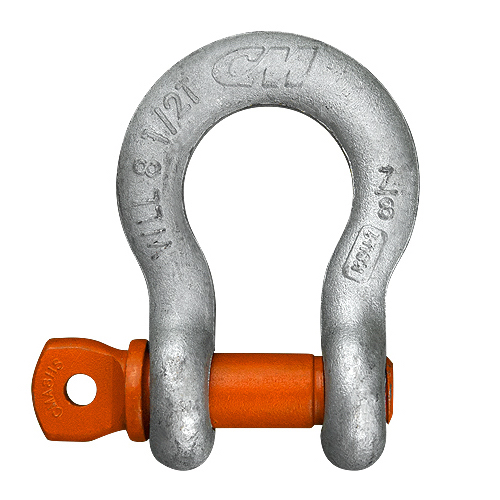

1-3/4″ CM Super Strong Alloy Screw Pin Anchor Shackle (SPA)

CM Super Strong Screw Pin Anchor Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

-Manufactured from technically advanced micro-alloy steel with optimal hardness for strength and ductility.

-Shackles show major deformation before failure

-Working load limit and traceability codes are shown as permanent markings on the body

-All shackles have alloy quenched and tempered pins

-Shackles meet dimensional requirements and exceed performance requirements of RR-C-271

-Special testing and certification is available if requested at the time of the order (additional charges apply)



  • Working Load Limit: 30 ton
  • Product Weight: 27.7 lbs
  • Manufacturer Name: Columbus McKinnon
  • Returns: This item cannot be returned due to safety risks.
  • Inside Height: 6.97″
  • Inside Width: 4.75″
  • Mouth Width: 2.94″
  • Pin Size: 2.00″
  • Shackle Size: 1-3/4″
  • Galvanized

Additional information

Weight 27.7 lbs
