1/4″ Bolt Type Anchor Shackle – Van Beest – .5 Ton Capacity
Working Load Limit (WLL)
Capacity in Tons: 0.50 t
See the shackle capacity chart (1/4″ WLL for every brand we carry)
$14.00
Typically ships in 1–2 business days.Questions? Call 706-750-9099
Share Product :
Facebook
Twitter
LinkedIn
Pinterest

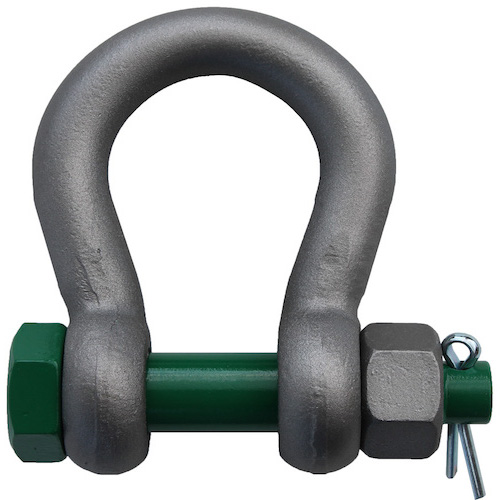

1/4″ Van Beest Standard Bolt Type Anchor Shackle
Van Beest Green Pin Bolt Type Anchor Shackles are extremely high quality shackles that are made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion. Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.
- Working Load Limit: .5 ton
- Product Weight: .11 lbs.
- Manufacturer Name: Van Beest
- Returns: This item cannot be returned due to safety risks.
- Inside Height: 1.16″
- Inside Width: .78″
- Mouth Width: .47″
- Pin Size: 5/16″
- Shackle Size: 1/4″
- Galvanized
| Weight | 0.13 lbs |
|---|---|
| shackle-manufacturer | |
| shackle-type | |
| shackle-size | |
| shackle-capacity |
