1 ply – 6″ x 16′ – Twisted Eye & Eye Nylon Sling

This 1 ply 6″ x 16′ twisted eye & eye nylon sling (EET1 806) is a Type 4 web sling, made in the USA from Class 7, 9,800 lb per inch of width American-made nylon webbing. It is rated 9,300 lbs vertical, 7,400 lbs choker and 18,600 lbs basket.

Specifications

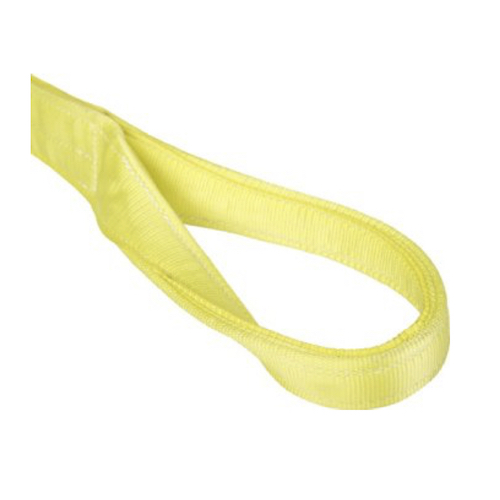

• Type: Twisted eye & eye (eyes at a right angle to the sling body)
• Material: Class 7, 9,800 lb per inch of width American-made nylon webbing
• Plies: 1
• Width: 6″

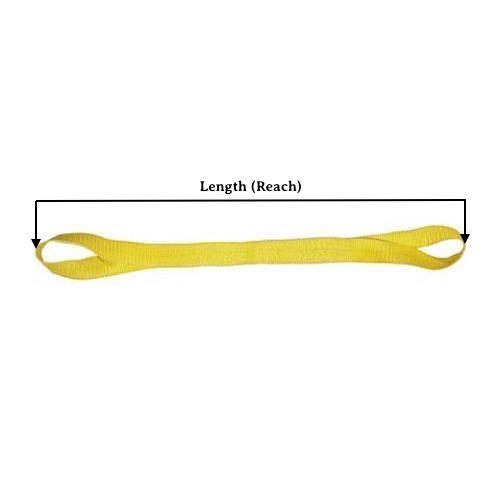

• Length: 16 ft
• Code: EET1 806
• Part number: 81-1616
• WLL, vertical hitch: 9,300 lbs
• WLL, choker hitch: 7,400 lbs
• WLL, basket hitch: 18,600 lbs
• Tag: High-performance, easy-to-read sling tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA
• Shipping: Typically ships in 1–2 business days

Choosing this sling

Choose a twisted eye & eye sling when you will mostly rig it in a choker hitch; it also works in vertical and basket hitches. The eyes are turned at a right angle to the sling body, so they sit more snugly on crane hooks and come together compactly in a basket hitch. Nylon is lightweight, flexible and relatively soft, so it suits lifts where protecting the load’s surface finish is important. Typical uses are rigging, general-purpose overhead lifting, crane hoisting and material handling. Inspect before each lift. Do not rig below 30°.

Custom widths up to 36″ and lengths over 20 ft are available. Need another size, length or type? Use the Nylon Sling Builder or call the experts at (706) 750-9099.
