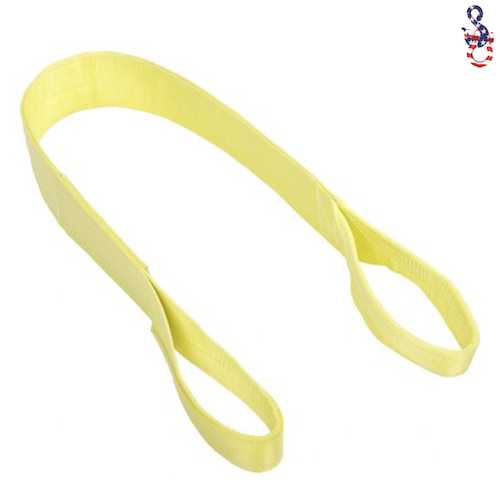

4 ply – 3″ x 4′ – Eye & Eye Nylon Sling

This 4 ply 3″ x 4′ flat eye & eye nylon sling (EE4 803) is a Type 3 web sling, made in the USA from Class 7, 9,800 lb per inch of width American-made nylon webbing. It is rated 14,900 lbs vertical, 11,900 lbs choker and 29,800 lbs basket.

Specifications

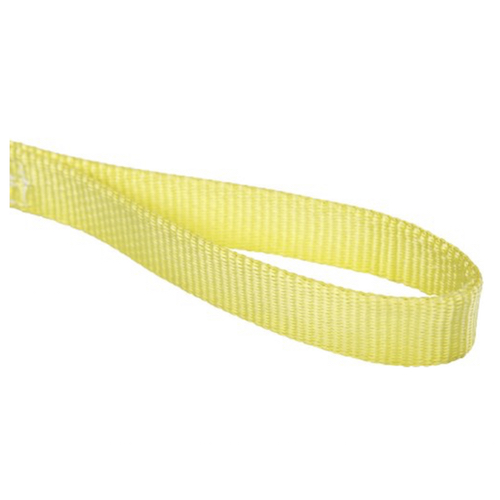

• Type: Flat eye & eye (eyes in the same plane as the sling body)
• Material: Class 7, 9,800 lb per inch of width American-made nylon webbing
• Plies: 4
• Width: 3″

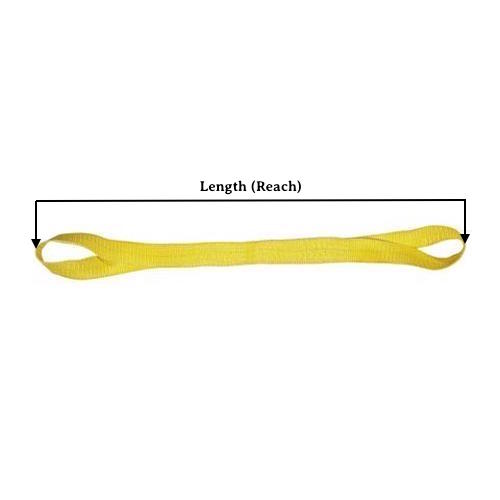

• Length: 4 ft
• Code: EE4 803
• Part number: 80-4304

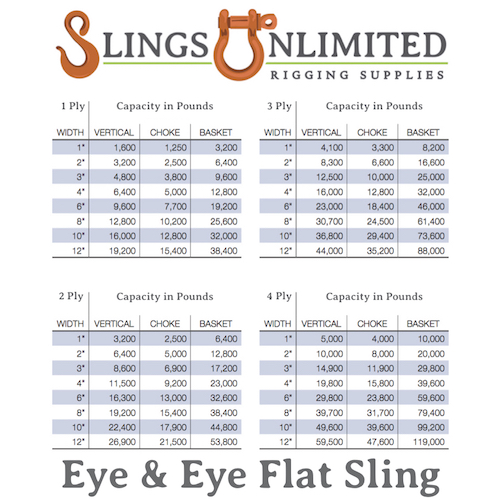

• WLL, vertical hitch: 14,900 lbs
• WLL, choker hitch: 11,900 lbs
• WLL, basket hitch: 29,800 lbs
• Tag: High-performance, easy-to-read sling tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA
• Shipping: Typically ships in 1–2 business days

Choosing this sling

Choose a flat eye & eye sling for general lifting in vertical, choker and basket hitches. Flat eyes lie in the same plane as the sling body, and the flat cross section makes the sling easy to pull from beneath the load once it is set down. Nylon is lightweight, flexible and relatively soft, so it suits lifts where protecting the load’s surface finish is important. Typical uses are rigging, general-purpose overhead lifting, crane hoisting and material handling. Inspect before each lift. Do not rig below 30°.

Custom widths up to 36″ and lengths over 20 ft are available. Need another size, length or type? Use the Nylon Sling Builder or call the experts at (706) 750-9099.
