5/8″ Screw Pin Anchor Shackle (SPA) – CM – 4.5 Ton Capacity


Working Load Limit (WLL)
Capacity in Tons: 4.5 t



SKU: 100-10625 Category:

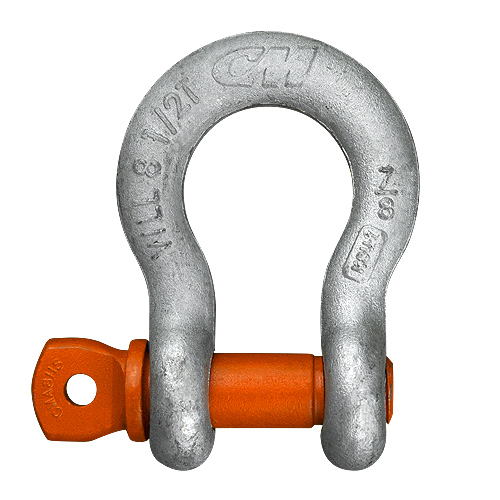

5/8″ CM Super Strong Alloy Shackle, Screw Pin Anchor (SPA) Style

CM Super Strong Shackles are carbon-type shackles with strength ratings that are 17 to 50% stronger than comparable-sized carbon shackles. As a result, these shackles are designed with a 6:1 design factor. Anchor shackles can be side loaded or used for multiple connections.

-Manufactured from technically advanced micro-alloy steel with optimal hardness for strength and ductility.

-Shackles show major deformation before failure

-Working load limit and traceability codes are shown as permanent markings on the body

-All shackles have alloy quenched and tempered pins

-Shackles meet dimensional requirements and exceed performance requirements of RR-C-271

-Special testing and certification is available if requested at the time of the order (additional charges apply)


  • Working Load Limit: 4.5 ton
  • Product Weight: 1.3 lbs
  • Manufacturer Name: Columbus McKinnon
  • Returns: This item cannot be returned due to safety risks.
  • Inside Height: 2.41″
  • Inside Width: 1.63″
  • Mouth Width: 1.06″
  • Pin Size: 0.75″
  • Shackle Size: 5/8″
  • Galvanized

Additional information

Weight 1.3 lbs
