Actek 1″-8 x 1.29″ Safety Swivel Hoist Ring (46210) – 10,000 lb WLL

The Actek #46210 (AK46210) Standard U-Bar Safety Swivel Hoist Ring is an American-engineered alloy steel lifting point rated for a 10,000 lb (5 Tons) Working Load Limit (WLL) with a 1″-8 UNC mounting thread and 1.29 in effective thread projection (dimension E). Designed to rotate 360° around the bolt axis and pivot 180° across the forged 1 in diameter U-bar bail, it automatically aligns with the direction of pull and maintains 100% of its rated capacity from 0° to 90°.

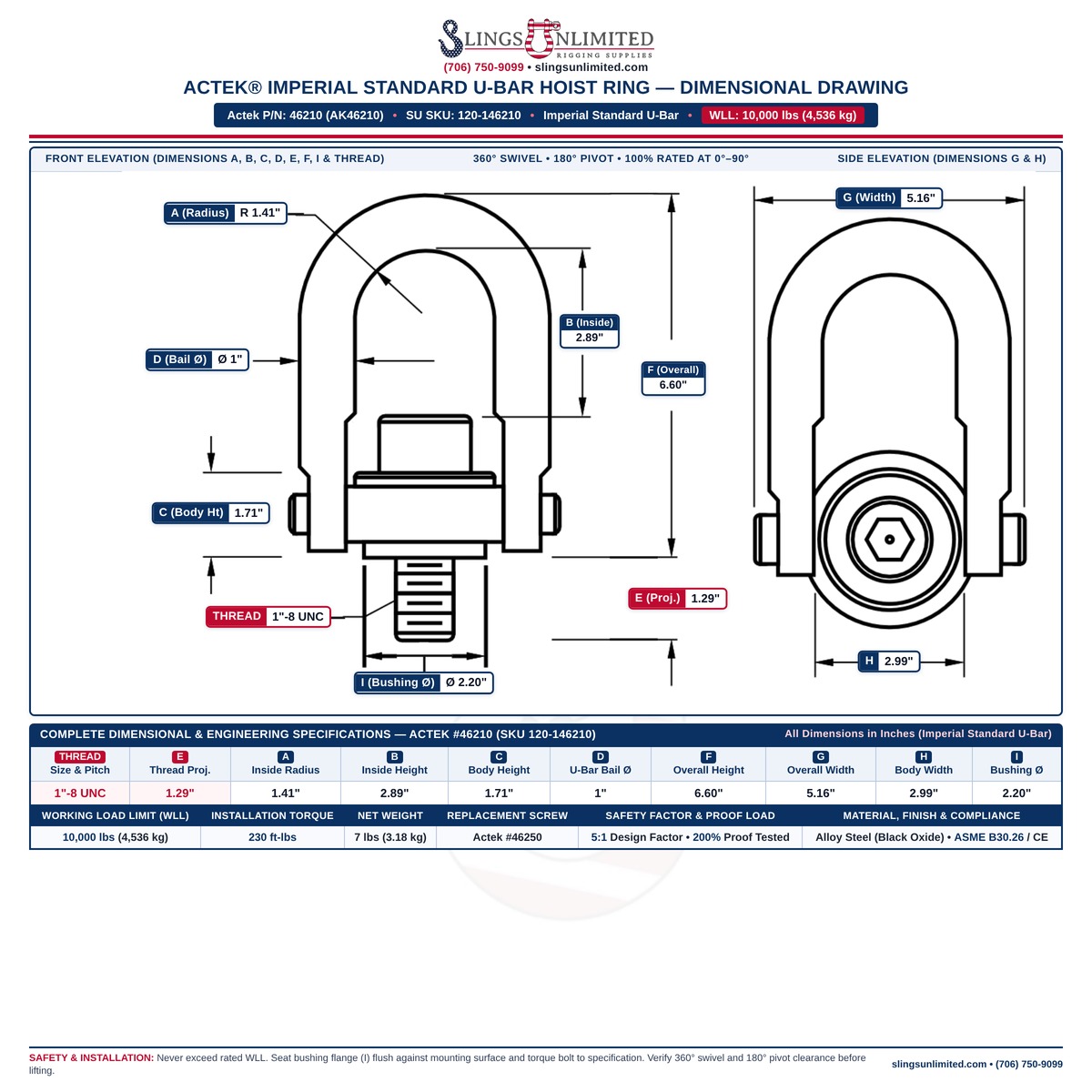

Specifications & Engineering Dimensions

• Manufacturer: Actek Manufacturing & Engineering (ISO 9001:2015 Certified)
• Actek Part Number: 46210 (AK46210)
• Slings Unlimited SKU: 120-146210
• Series / Bail Style: Imperial Standard U-Bar
• Working Load Limit (WLL): 10,000 lbs (5 Tons) (100% rated from 0° to 90°)
• Safety Factor: 5:1 Design Factor
• Thread Size & Pitch: 1″-8 UNC
• Effective Thread Projection (Dimension E): 1.29 in
• U-Bar Bail Diameter (Dimension D): 1 in
• U-Bar Inside Radius (Dimension A): 1.41 in
• U-Bar Inside Effective Height (Dimension B): 2.89 in
• Swivel Body Height (Dimension C): 1.71 in
• Overall Height Above Load Surface (Dimension F): 6.60 in
• Overall Assembly Width (Dimension G): 5.16 in
• Swivel Body Width (Dimension H): 2.99 in
• Bushing Flange Diameter (Dimension I): 2.20 in
• Recommended Installation Torque: 230 ft-lbs
• Product Weight: 7 lbs
• Replacement Screw Part Number: Actek #46250
• Swivel & Pivot Range: 360° Swivel / 180° Pivot
• Material & Heat Treatment: Certified Heat-Treated Alloy Steel
• Finish: Black Oxide per MIL Specification (Cadmium, Electroless Nickel, or Zinc Plating available by special order)
• Proof-Load Testing: Individually 200% Proof-Load Tested with Serial Number & Certificate for Traceability
• Non-Destructive & Fatigue Testing: 100% Magnetic Particle Inspected; Fatigue Tested to 20,000 Cycles at 1.5x Rated Load
• Standards Compliance: Meets or Exceeds ASME B30.26; Conforms to CE
• Returns: This item cannot be returned due to safety risks.

Application & Installation Guidelines

Its compact Standard U-Bar bail provides 2.89 in of interior vertical clearance (dimension B) and 6.60 in of overall height (dimension F), keeping profile height low while easily accepting standard rigging hooks and alloy shackles. Unlike conventional rigid shoulder eye bolts—which suffer severe capacity derating and bending stress under side loads—the Actek #46210 swivel hoist ring pivots and swivels freely so the bail aligns with the sling leg. Every unit is manufactured from certified heat-treated alloy steel, 100% magnetic particle inspected, and individually proof-load tested to 200% of Working Load Limit with a permanent serial number stamped on the body for full inspection traceability.

Mounting & Torque Requirements: Always seat the 2.20 in bushing flange (dimension I) flush against a flat, machined mounting surface so the U-bar can rotate 360° and pivot 180° without striking adjacent walls or corners. Torque the mounting screw to the recommended 230 ft-lbs and re-check torque periodically during extended service. To achieve full rated capacity in a tapped blind hole, the parent material should have a minimum tensile strength of 80,000 PSI; for softer steels, aluminum, or cast iron, use a through-hole installation secured with a matching high-strength nut and flat washer on the underside. When lifting with multiple hoist rings at an angle, remember that sling leg tension increases as the horizontal sling angle A decreases (Load per Ring = Total Weight / [Number of Rings × sin A]); never exceed the 10,000 lbs (5 Tons) rating per ring or apply shock loads.

Need help selecting the right thread projection, replacement bolt (#46250), or companion rigging shackles and hoist rings? Contact Us or call our rigging specialists at (706) 750-9099.

Safety

Misuse of rigging and safety gear can result in serious injury including loss of life. At no time should rigging or safety gear be used beyond its certified Working Load Limit (WLL). All hoist rings and lifting hardware must be thoroughly inspected before every lift by a competent person, properly torqued, and kept free to pivot and swivel without obstruction. Worn, damaged, or shock-loaded rigging gear must never be used. Slings Unlimited disclaims liability for any misuse or incorrect product selection by our customers.
