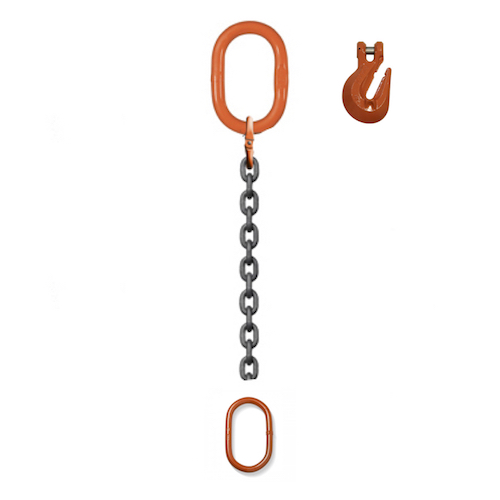

1″ X 12 Feet, Grade 100, SOOA

This 1″ x 12 ft Grade 100 single leg chain sling comes with oblong rings on both ends and adjuster. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 1″ Grade 100 alloy chain (American-made)
• Reach (length): 12 ft
• Legs: 1
• Config code: SOOA

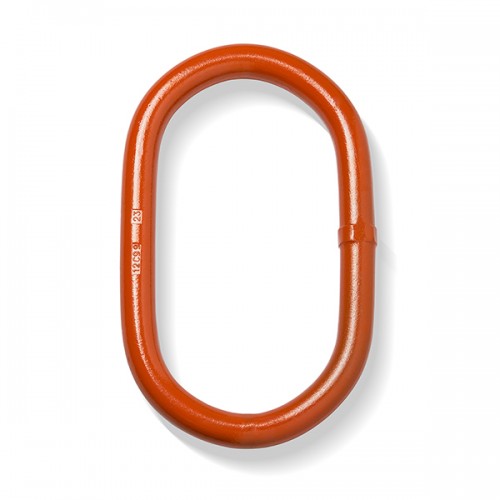

• Bottom fittings: Oblong ring (both ends)
• Adjusters: Yes
• WLL, vertical hitch: 59,700 lbs
• WLL, choker hitch: 47,700 lbs
• WLL, basket hitch: 119,400 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

A single leg works in vertical, choker and basket hitches; the ratings for each hitch are listed above. Adjusters shorten each leg independently to level a load whose center of gravity is off-center or whose pick points are uneven. Oblong rings on the leg ends connect to shackles or slip over hooks and lifting lugs, with no latch to work around.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
