7/8″ X 18 Feet, Grade 100, SOFA

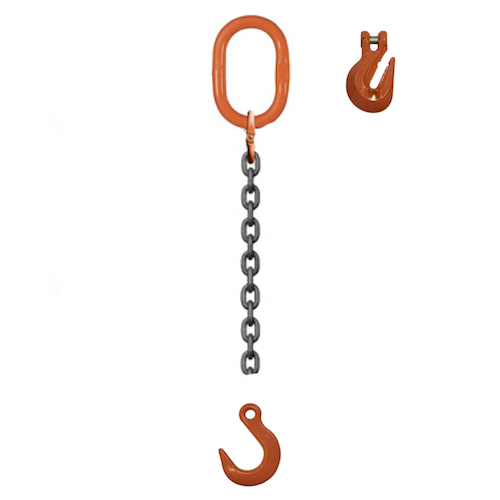

This 7/8″ x 18 ft Grade 100 single leg chain sling comes with an oblong ring, a foundry hook and adjuster. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 7/8″ Grade 100 alloy chain (American-made)
• Reach (length): 18 ft
• Legs: 1
• Config code: SOFA
• Top fitting: Oblong ring
• Bottom fittings: Foundry hook
• Adjusters: Yes

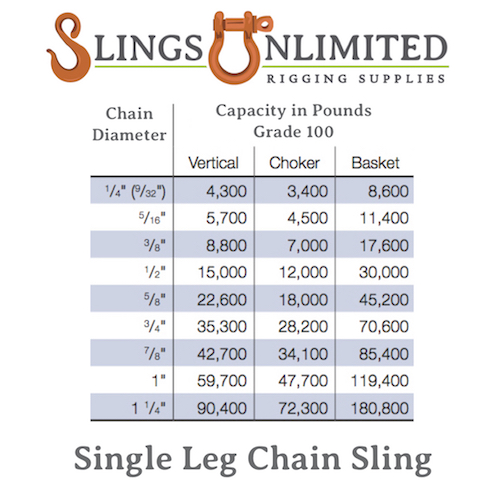

• WLL, vertical hitch: 42,700 lbs
• WLL, choker hitch: 34,100 lbs
• WLL, basket hitch: 85,400 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

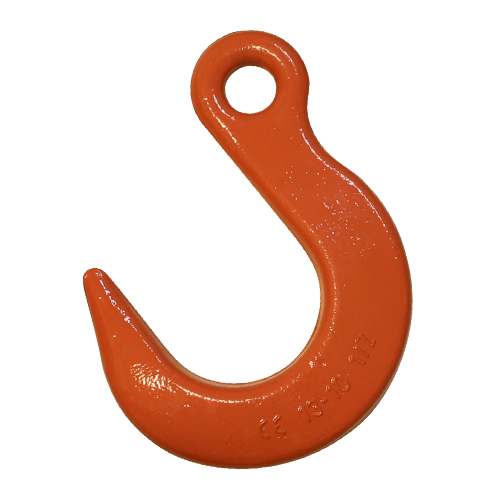

A single leg works in vertical, choker and basket hitches; the ratings for each hitch are listed above. Adjusters shorten each leg independently to level a load whose center of gravity is off-center or whose pick points are uneven. Foundry hooks have a wide, open throat with no latch, made for large lifting eyes and quick hook-up and release.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
