3/4″ X 12 Feet, Grade 100, DOF

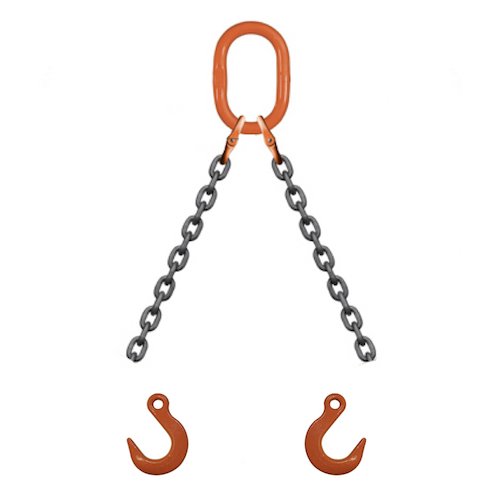

This 3/4″ x 12 ft Grade 100 double leg (2 leg) chain sling comes with an oblong master link and foundry hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 3/4″ Grade 100 alloy chain (American-made)
• Reach (length): 12 ft
• Legs: 2
• Config code: DOF
• Top fitting: Oblong master link
• Bottom fittings: (2) foundry hooks
• Adjusters: None

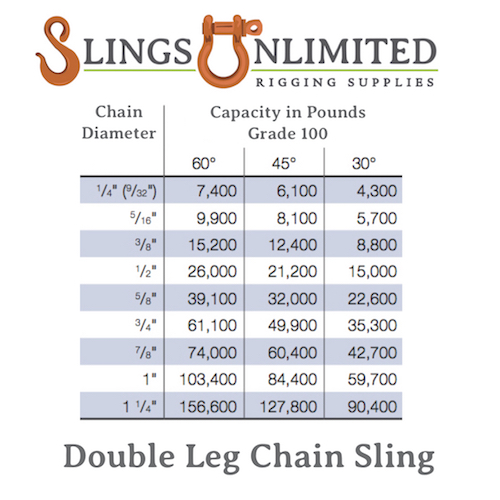

• WLL at 60°: 61,100 lbs
• WLL at 45°: 49,900 lbs
• WLL at 30°: 35,300 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

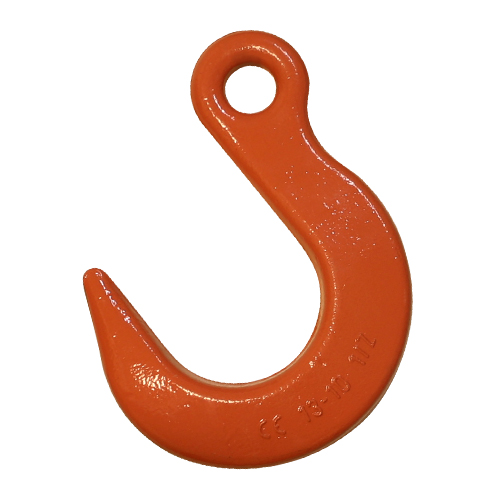

Choose a 2 leg sling when the load has two pick points: it keeps long or awkward loads level and under control. Foundry hooks have a wide, open throat with no latch, made for large lifting eyes and quick hook-up and release. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 61,100 lbs at 60° to 35,300 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
