3/4″ X 18 Feet, Grade 100, DOSA

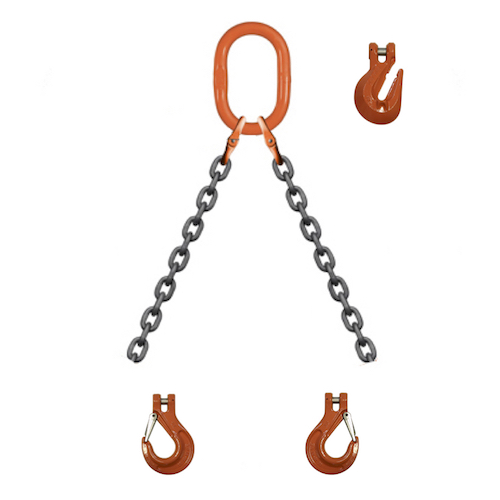

This 3/4″ x 18 ft Grade 100 double leg (2 leg) chain sling comes with an oblong master link, latched sling hooks and adjusters. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 3/4″ Grade 100 alloy chain (American-made)

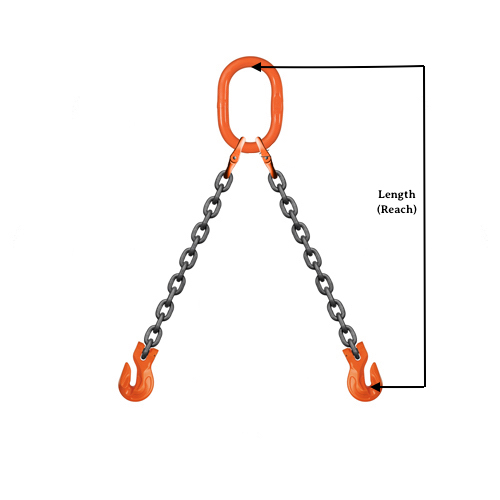

• Reach (length): 18 ft
• Legs: 2
• Config code: DOSA
• Top fitting: Oblong master link

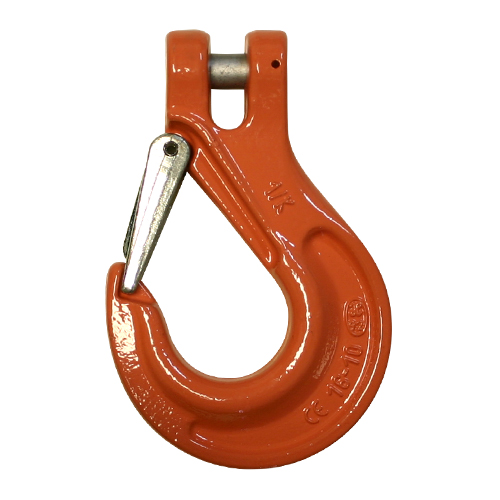

• Bottom fittings: (2) latched sling hooks
• Adjusters: Yes, one per leg

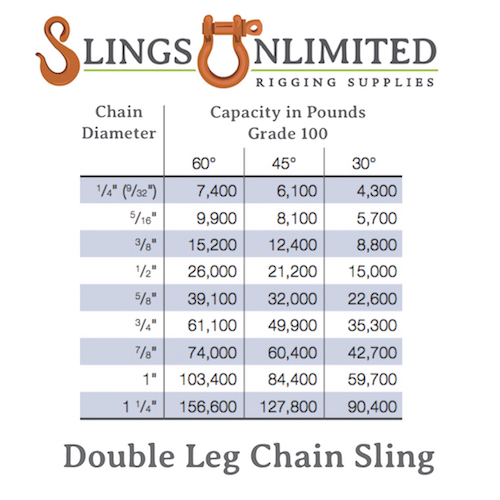

• WLL at 60°: 61,100 lbs
• WLL at 45°: 49,900 lbs
• WLL at 30°: 35,300 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 2 leg sling when the load has two pick points: it keeps long or awkward loads level and under control. Adjusters shorten each leg independently to level a load whose center of gravity is off-center or whose pick points are uneven. Latched sling hooks connect and release quickly, and the latch helps keep the attachment from slipping out. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 61,100 lbs at 60° to 35,300 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
