3/8″ X 20 Feet, Grade 100, TOG

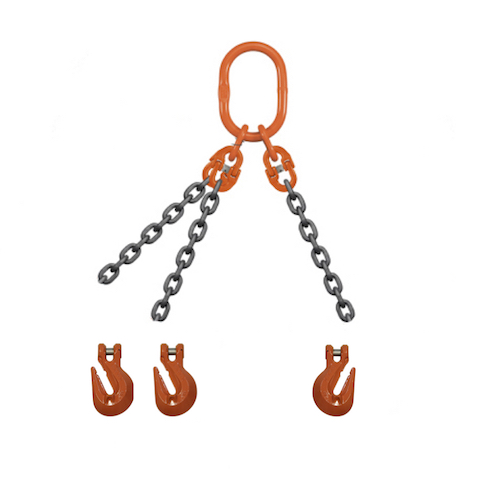

This 3/8″ x 20 ft Grade 100 triple leg (3 leg) chain sling comes with a Sub Assembly and grab hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 3/8″ Grade 100 alloy chain (American-made)
• Reach (length): 20 ft
• Legs: 3
• Config code: TOG
• Top fitting: Sub Assembly
• Bottom fittings: (3) grab hooks
• Adjusters: None

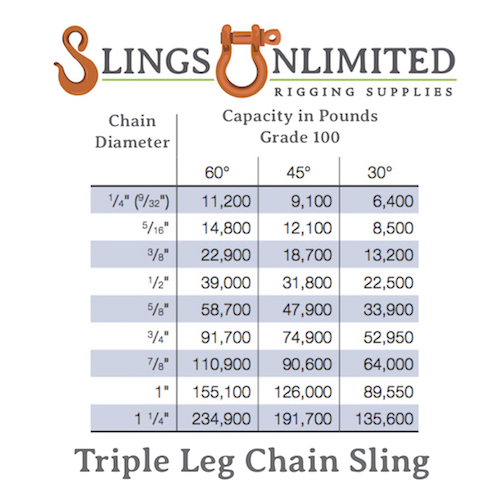

• WLL at 60°: 22,900 lbs
• WLL at 45°: 18,700 lbs
• WLL at 30°: 13,200 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 3 leg sling for loads with three pick points. Grab hooks hold a single chain link, so you can shorten a leg or choke around the load. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 22,900 lbs at 60° to 13,200 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
