7/8″ X 12 Feet, Grade 100, TOFA

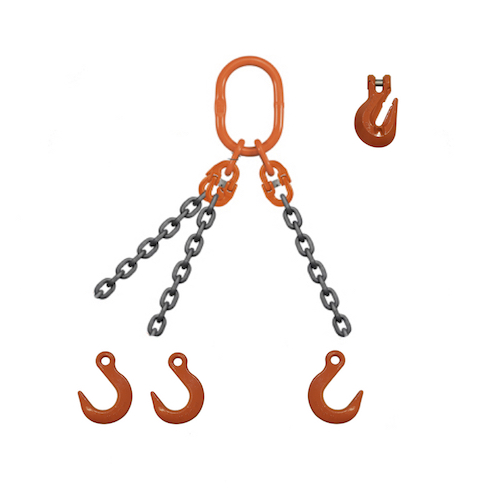

This 7/8″ x 12 ft Grade 100 triple leg (3 leg) chain sling comes with a Sub Assembly, foundry hooks and adjusters. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 7/8″ Grade 100 alloy chain (American-made)
• Reach (length): 12 ft
• Legs: 3
• Config code: TOFA
• Top fitting: Sub Assembly

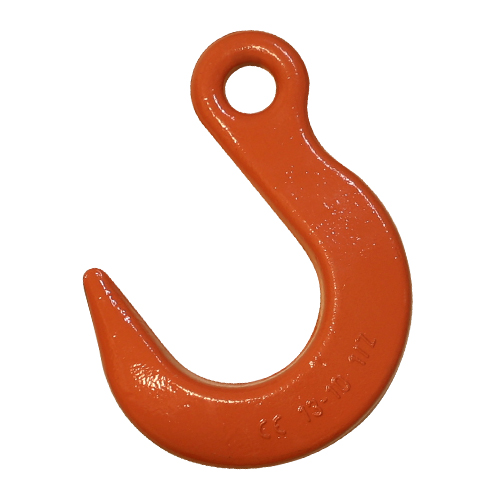

• Bottom fittings: (3) foundry hooks
• Adjusters: Yes, one per leg

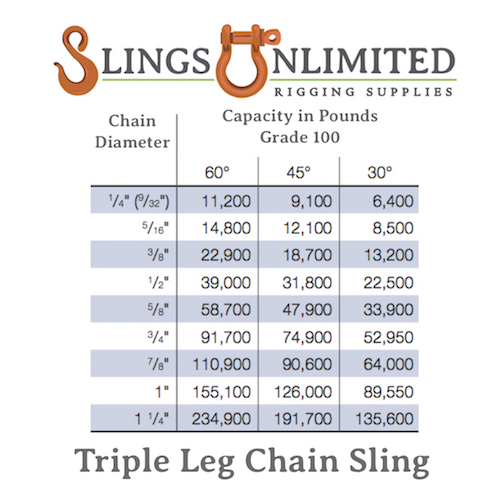

• WLL at 60°: 110,900 lbs
• WLL at 45°: 90,600 lbs
• WLL at 30°: 64,000 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 3 leg sling for loads with three pick points. Adjusters shorten each leg independently to level a load whose center of gravity is off-center or whose pick points are uneven. Foundry hooks have a wide, open throat with no latch, made for large lifting eyes and quick hook-up and release. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 110,900 lbs at 60° to 64,000 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
