1/2″ X 20 Feet, Grade 100, TOS

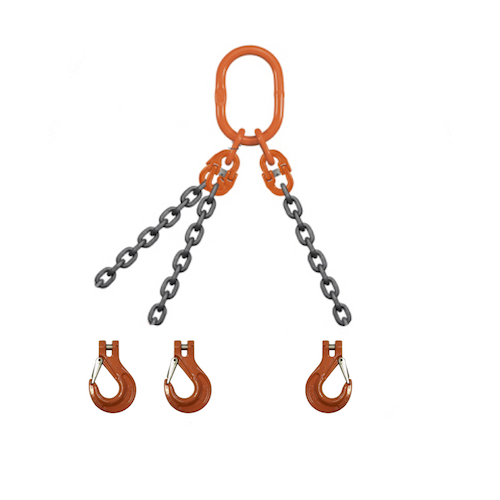

This 1/2″ x 20 ft Grade 100 triple leg (3 leg) chain sling comes with a Sub Assembly and latched sling hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 1/2″ Grade 100 alloy chain (American-made)
• Reach (length): 20 ft
• Legs: 3
• Config code: TOS
• Top fitting: Sub Assembly

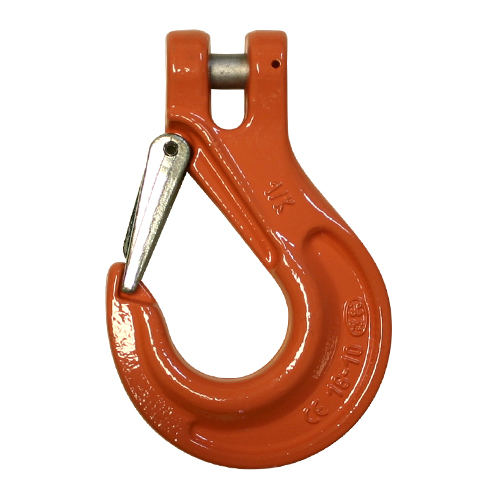

• Bottom fittings: (3) latched sling hooks
• Adjusters: None

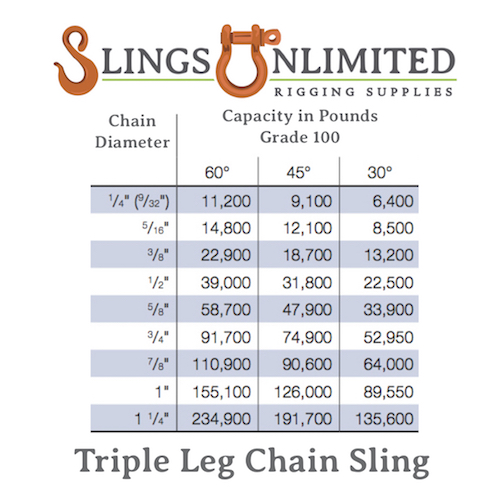

• WLL at 60°: 39,000 lbs
• WLL at 45°: 31,800 lbs
• WLL at 30°: 22,500 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 3 leg sling for loads with three pick points. Latched sling hooks connect and release quickly, and the latch helps keep the attachment from slipping out. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 39,000 lbs at 60° to 22,500 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
