9/32″ X 18 Feet, Grade 100, QOG

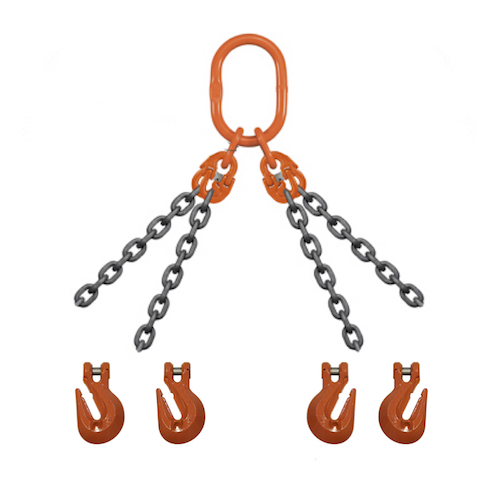

This 9/32″ x 18 ft Grade 100 quad leg (4 leg) chain sling comes with a Sub Assembly and grab hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 9/32″ Grade 100 alloy chain (American-made)
• Reach (length): 18 ft
• Legs: 4
• Config code: QOG
• Top fitting: Sub Assembly
• Bottom fittings: (4) grab hooks
• Adjusters: None

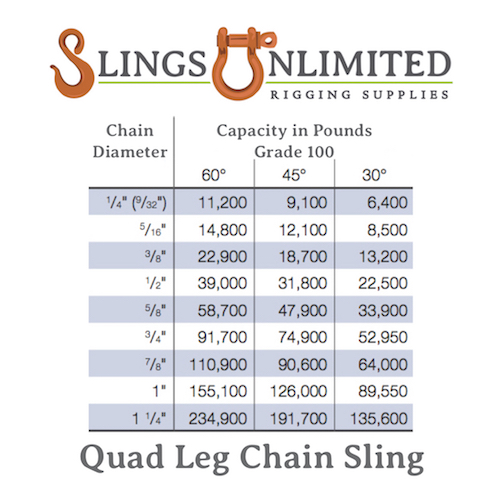

• WLL at 60°: 11,200 lbs
• WLL at 45°: 9,100 lbs
• WLL at 30°: 6,400 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 4 leg sling for square or rectangular loads with four pick points. Grab hooks hold a single chain link, so you can shorten a leg or choke around the load. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 11,200 lbs at 60° to 6,400 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
