1″ X 18 Feet, Grade 100, QOF

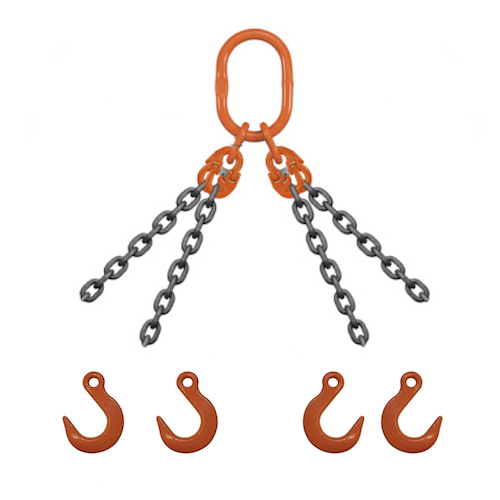

This 1″ x 18 ft Grade 100 quad leg (4 leg) chain sling comes with a Sub Assembly and foundry hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 1″ Grade 100 alloy chain (American-made)
• Reach (length): 18 ft
• Legs: 4
• Config code: QOF
• Top fitting: Sub Assembly
• Bottom fittings: (4) foundry hooks
• Adjusters: None

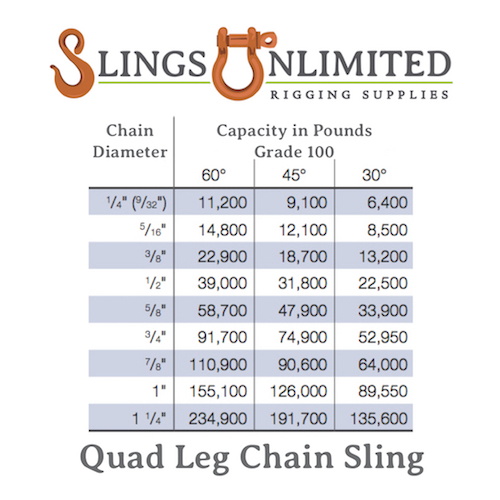

• WLL at 60°: 155,100 lbs
• WLL at 45°: 126,000 lbs
• WLL at 30°: 89,550 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

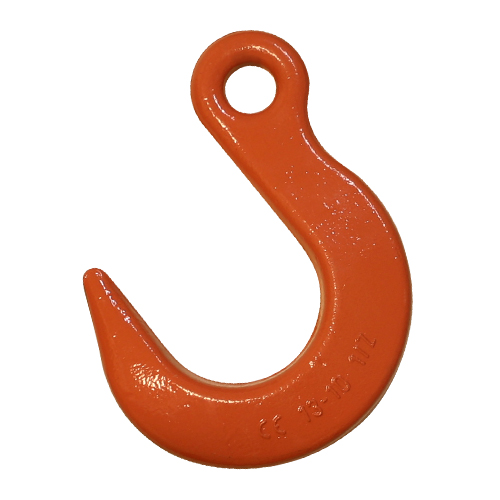

Choose a 4 leg sling for square or rectangular loads with four pick points. Foundry hooks have a wide, open throat with no latch, made for large lifting eyes and quick hook-up and release. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 155,100 lbs at 60° to 89,550 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
