5/8″ X 8 Feet, Grade 100, QOFA

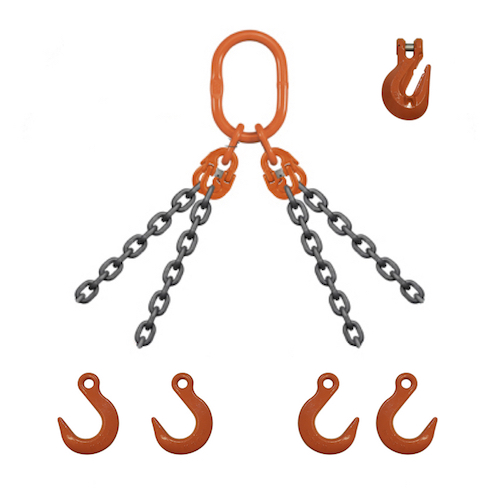

This 5/8″ x 8 ft Grade 100 quad leg (4 leg) chain sling comes with a Sub Assembly, foundry hooks and adjusters. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 5/8″ Grade 100 alloy chain (American-made)
• Reach (length): 8 ft
• Legs: 4
• Config code: QOFA
• Top fitting: Sub Assembly

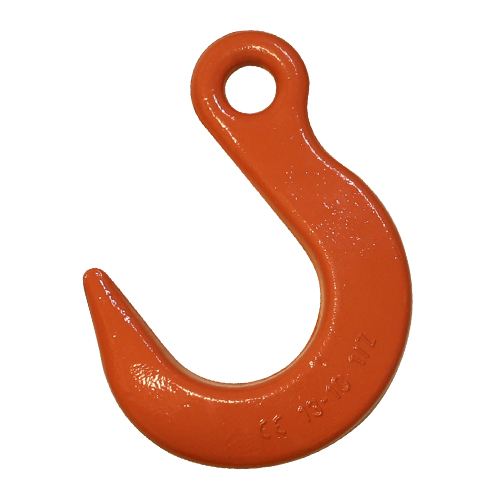

• Bottom fittings: (4) foundry hooks

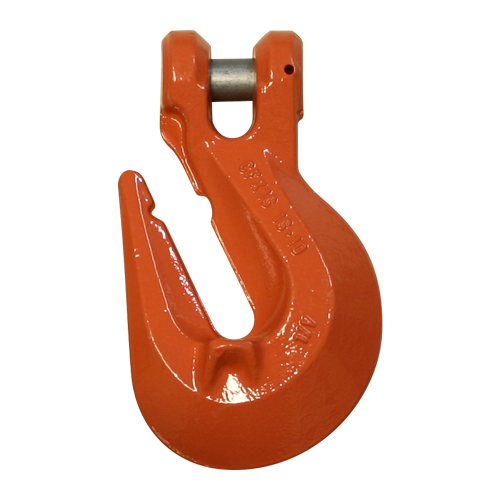

• Adjusters: Yes, one per leg

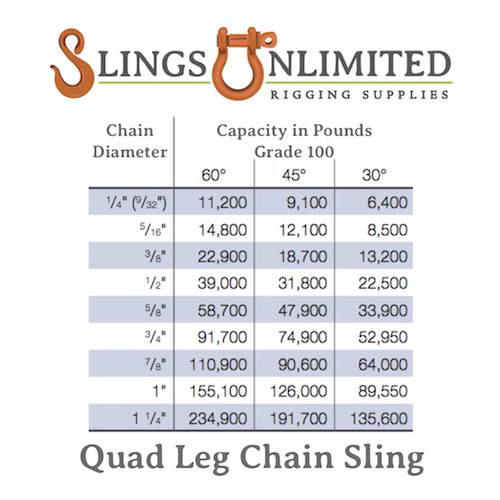

• WLL at 60°: 58,700 lbs
• WLL at 45°: 47,900 lbs
• WLL at 30°: 33,900 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 4 leg sling for square or rectangular loads with four pick points. Adjusters shorten each leg independently to level a load whose center of gravity is off-center or whose pick points are uneven. Foundry hooks have a wide, open throat with no latch, made for large lifting eyes and quick hook-up and release. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 58,700 lbs at 60° to 33,900 lbs at 30°. Do not rig below 30°.
