9/32″ X 8 Feet, Grade 100, QOS

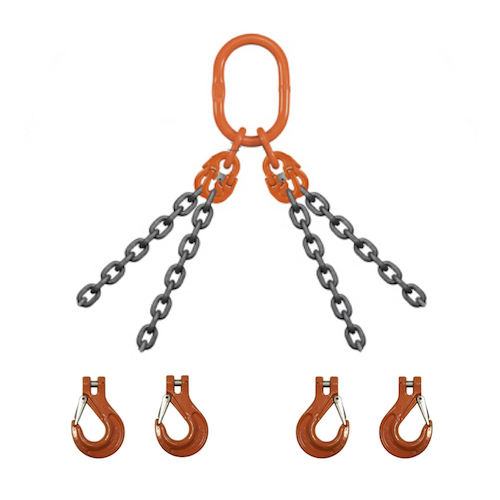

This 9/32″ x 8 ft Grade 100 quad leg (4 leg) chain sling comes with a Sub Assembly and latched sling hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 9/32″ Grade 100 alloy chain (American-made)

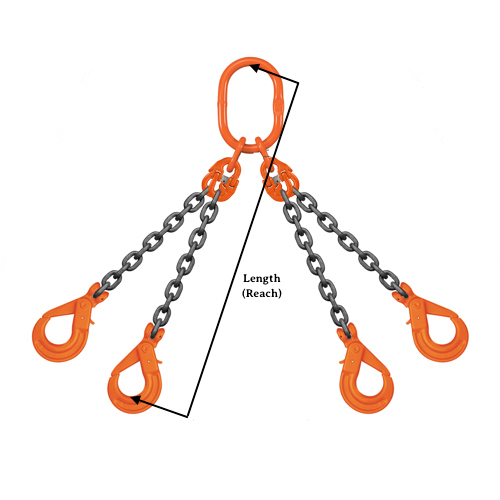

• Reach (length): 8 ft
• Legs: 4
• Config code: QOS
• Top fitting: Sub Assembly

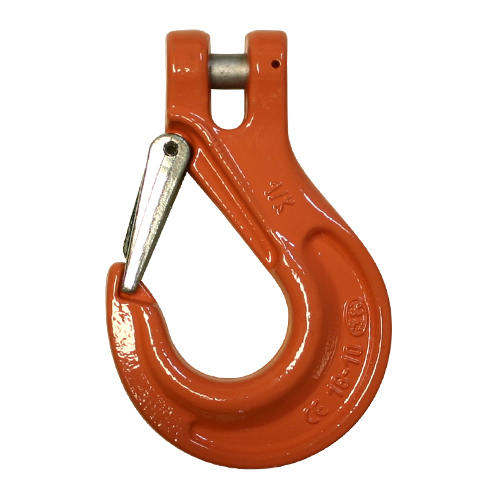

• Bottom fittings: (4) latched sling hooks
• Adjusters: None

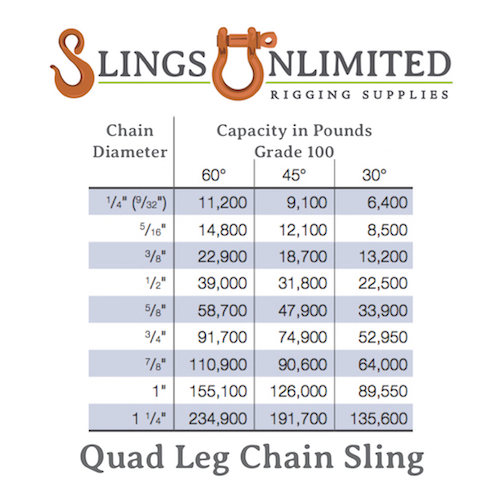

• WLL at 60°: 11,200 lbs
• WLL at 45°: 9,100 lbs
• WLL at 30°: 6,400 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 4 leg sling for square or rectangular loads with four pick points. Latched sling hooks connect and release quickly, and the latch helps keep the attachment from slipping out. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 11,200 lbs at 60° to 6,400 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
