1/2″ X 8 Feet, Grade 100, QOSL

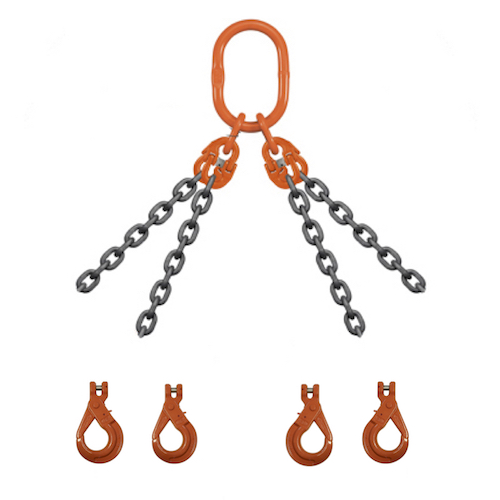

This 1/2″ x 8 ft Grade 100 quad leg (4 leg) chain sling comes with a Sub Assembly and self-locking hooks. It is made in the USA with American-made Grade 100 alloy chain and globally sourced fittings.

Specifications

• Chain size: 1/2″ Grade 100 alloy chain (American-made)

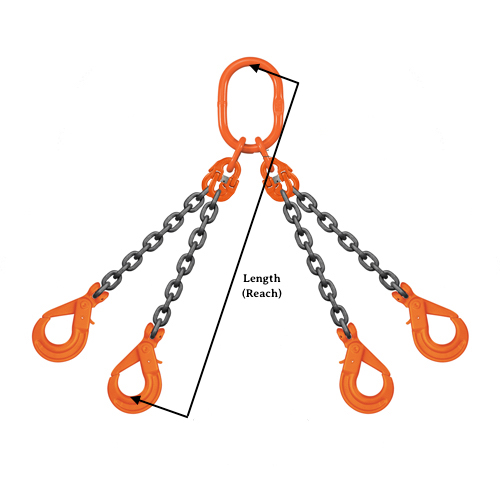

• Reach (length): 8 ft
• Legs: 4
• Config code: QOSL
• Top fitting: Sub Assembly

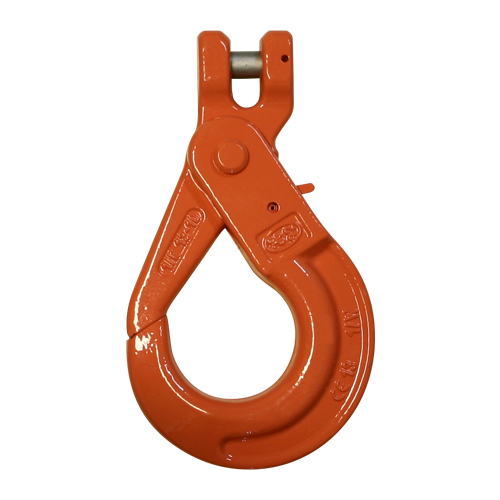

• Bottom fittings: (4) self-locking hooks
• Adjusters: None

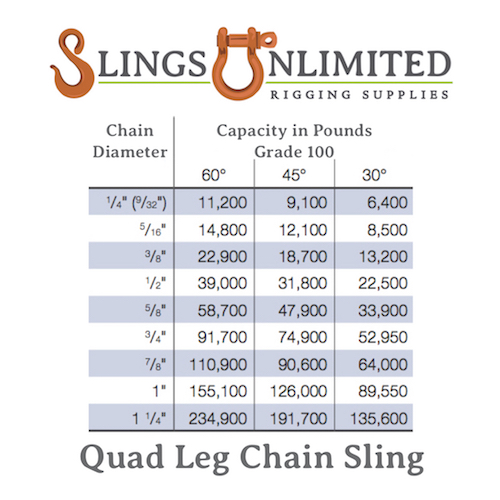

• WLL at 60°: 39,000 lbs
• WLL at 45°: 31,800 lbs
• WLL at 30°: 22,500 lbs
• Tag: 1/4″ thick aluminum ID tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA, to order; American-made chain, globally sourced fittings
• Ships: Typically in 3–5 business days

Choosing this sling

Choose a 4 leg sling for square or rectangular loads with four pick points. Self-locking hooks close and lock under load and must be released deliberately, which prevents accidental opening. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 39,000 lbs at 60° to 22,500 lbs at 30°. Do not rig below 30°.

Need another size, reach or fitting? Use the Chain Sling Builder or call the experts at (706) 750-9099.
