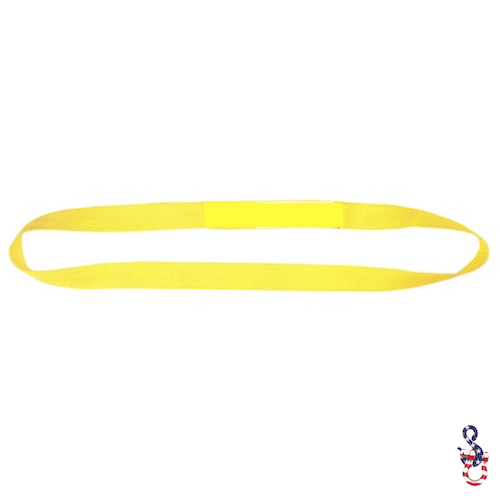

EN3 803 X 18′ Endless Nylon Flat Sling

This 3 ply 3″ x 18′ endless nylon sling (EN3 803) is a Type 5 continuous-loop web sling, made in the USA from Class 7, 9,800 lb per inch of width American-made nylon webbing. It is rated 21,500 lbs vertical, 17,200 lbs choker and 43,000 lbs basket.

Specifications

• Type: Endless (continuous loop, no eyes)
• Material: Class 7, 9,800 lb per inch of width American-made nylon webbing
• Plies: 3
• Width: 3″

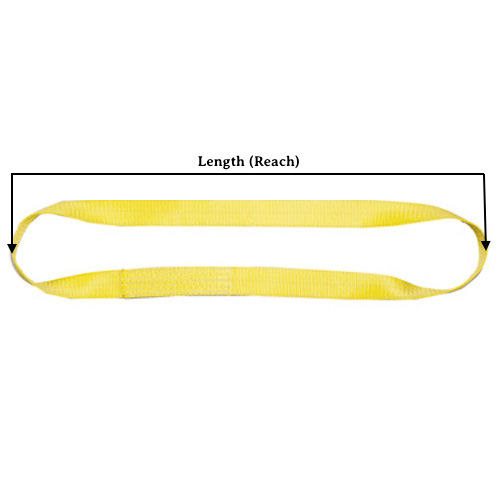

• Length: 18 ft
• Code: EN3 803
• Part number: 85-3318
• WLL, vertical hitch: 21,500 lbs
• WLL, choker hitch: 17,200 lbs
• WLL, basket hitch: 43,000 lbs
• Tag: High-performance, easy-to-read sling tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA
• Shipping: Typically ships in 1–2 business days

Choosing this sling

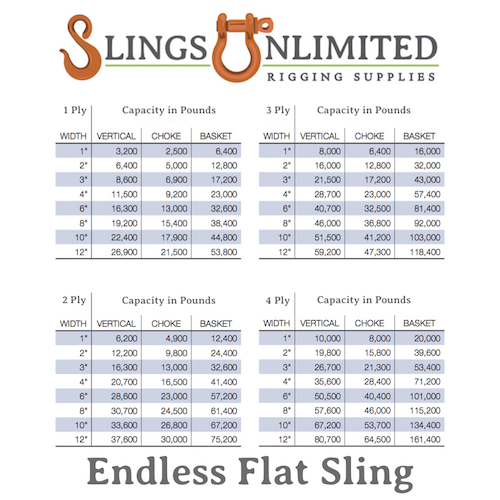

Choose an endless sling when one sling has to work in vertical, choker and basket hitches; the ratings for each hitch are listed above. As a continuous loop, an endless sling lets you move the contact area with each lift, which spreads wear and extends sling life. Nylon is lightweight, flexible and relatively soft, so it suits lifts where protecting the load’s surface finish is important. Nylon stretches a little more than polyester, which minimizes shock to the load, and it is the better choice when greasy conditions exist. Inspect before each lift. Do not rig below 30°.

Custom widths up to 36″ and lengths over 20 ft are available. Need another size, length or type? Use the Nylon Sling Builder or call the experts at (706) 750-9099.
