Orange 5300 Endless Polyester Round Lifting Sling X 16 Feet

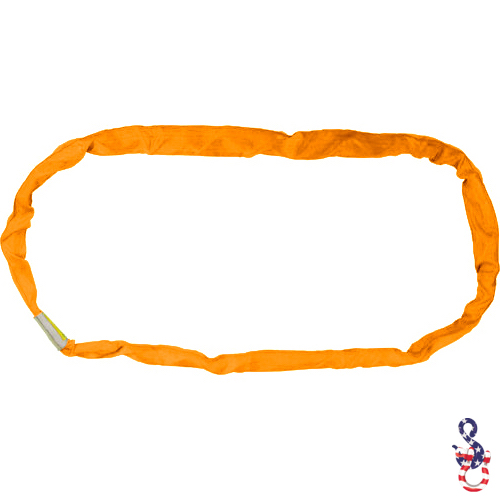

This 16 ft Orange 5300 endless polyester round sling (SP-5300X16) is made in the USA from premium American-made polyester fibers. It is rated 53,000 lbs vertical, 42,400 lbs choker and 106,000 lbs basket.

Specifications

• Type: Endless polyester round sling (continuous loop)
• Color / capacity: Orange 5300, 53,000 lbs vertical

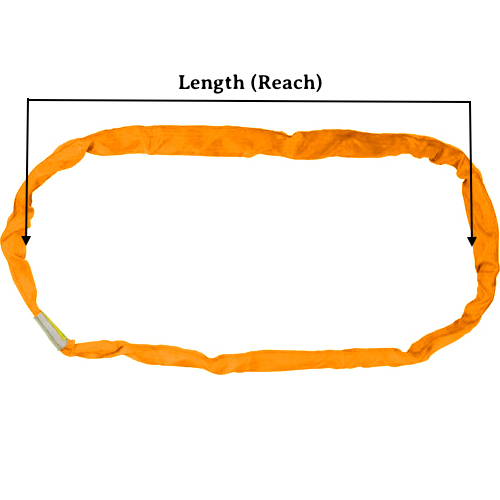

• Length: 16 ft
• Code: SP-5300X16
• Part number: 97-5016
• Core: Load-bearing American-made polyester yarn fibers
• Cover: Two abrasion-resistant, color-coded jackets (inner and outer)

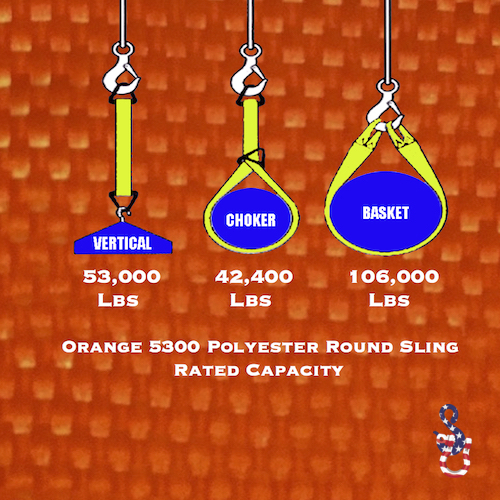

• WLL, vertical hitch: 53,000 lbs
• WLL, choker hitch: 42,400 lbs
• WLL, basket hitch: 106,000 lbs
• Tag: High-performance, easy-to-read sling tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA
• Shipping: Typically ships in 1–2 business days.

Choosing this sling

As an endless sling it can be rigged in vertical, choker and basket hitches; the rating for each hitch is listed above. The two jackets protect the load-bearing yarn from oil, grime and other contaminants. Polyester round slings have a low stretch value and are lighter than wire rope and chain. Low moisture absorption makes them resistant to rot and mildew, so they suit marine work and ship hauling. Because they are soft, they hug the load surface. They are not recommended for use with ethers or alkalis. Inspect before each lift. Do not rig below 30°.

Custom round slings are available, including longer lengths, other capacities and round sling bridles. Need another size, length or type? Use the Round Sling Builder or call the experts at (706) 750-9099.
