Green Pin® 1-1/4″ Bolt Type Anchor Shackle – Van Beest – 12 Ton Capacity


Working Load Limit (WLL)
Capacity in Tons: 12 t



SKU: 103-21120 Category:

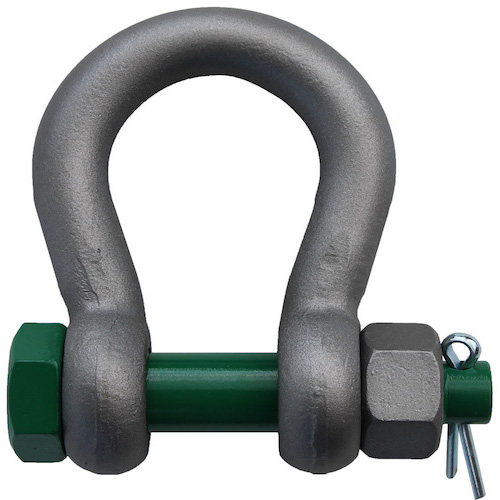

Green Pin® 1-1/4″ Bolt Type Anchor Shackle – Van Beest

Van Beest Green Pin® 1-1/4″ Bolt Type Anchor Shackles are extremely high quality shackles that are made in Holland. These shackles are very easily identifiable in the field because of their trademarked green pin. A hot dipped galvanized finish helps protect the high tensile Grade 6 steel that is quenched and tempered from corrosion. Bolt type anchor shackles are intended for long-term installation or permanent installation. The bolt style system prevents sliding loads from turning and backing the pin out of the shackle. Anchor bow shackles have a wider shape than D shaped shackles and are mainly used on multi-leg rigging systems.

  • Working Load Limit: 12 ton
  • Product Weight: 10.81 lbs.
  • Manufacturer Name: Van Beest
  • Returns: This item cannot be returned due to safety risks.
  • Inside Height: 4.53″
  • Inside Width: 3.28″
  • Mouth Width: 2″
  • Pin Size: 1-3/8″
  • Shackle Size: 1-1/4″
  • Galvanized


Misuse of the rigging and safety gear can result in serious injury including loss of life. At no time should rigging or safety gear be used beyond its certified load ratings (aka Working Load Limits). Normal wear and tear should be expected with use of rigging and safety gear.  Therefore, all gear should be thoroughly inspected before each and every use. Worn or unsafe rigging and safety gear should never be used. Slings Unlimited disclaims liability for any misuse or incorrect product selection by our customers.

Additional information

Weight 10.81 lbs
