EN4 804 X 10′

This 4 ply 4″ x 10′ endless nylon sling (EN4 804) is a continuous-loop web sling, made in the USA from Class 7, 9,800 lb per inch of width American-made nylon webbing. It is rated 35,600 lbs vertical, 28,400 lbs choker and 71,200 lbs basket.

Specifications

• Type: Endless (continuous loop, no eyes)
• Material: Class 7, 9,800 lb per inch of width American-made nylon webbing
• Plies: 4
• Width: 4″

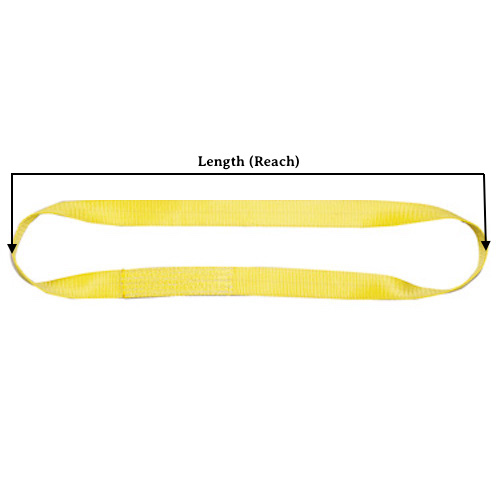

• Length: 10 ft
• Code: EN4 804
• Part number: 85-4410
• WLL, vertical hitch: 35,600 lbs
• WLL, choker hitch: 28,400 lbs
• WLL, basket hitch: 71,200 lbs
• Tag: High-performance, easy-to-read sling tag
• Standard: Meets or exceeds ASME B30.9
• Made in: USA
• Shipping: Typically ships in 1–2 business days

Choosing this sling

Choose an endless sling when one sling has to work in vertical, choker and basket hitches; the ratings for each hitch are listed above. Inspect before each lift. Do not rig below 30°.

Custom widths up to 36″ and lengths over 20 ft are available. Need another size, length or type? Use the Nylon Sling Builder or call the experts at (706) 750-9099.
