5/8″ X 20 Feet, 3 Leg Bridle w/Thimble Eyes & Hooks

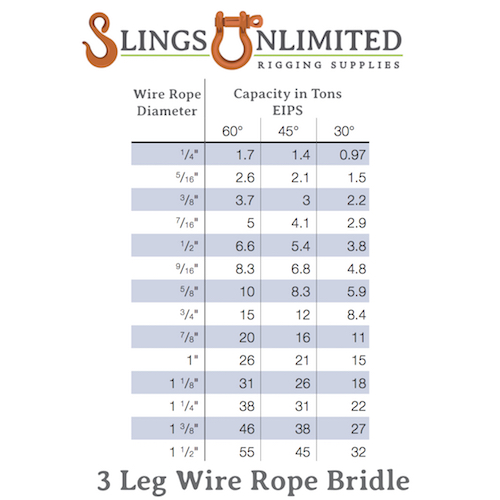

Capacity in Tons:
10 @ 60 Degrees
8.3 @ 45 Degrees
5.9 @ 30 Degrees

$453.25

Made in USATypically ships in 1–2 business days.Questions? Call 706-750-9099

Shipping

Ships via UPS.

SKU 22-45820 Category

Share Product :

Facebook
X
LinkedIn
Pinterest

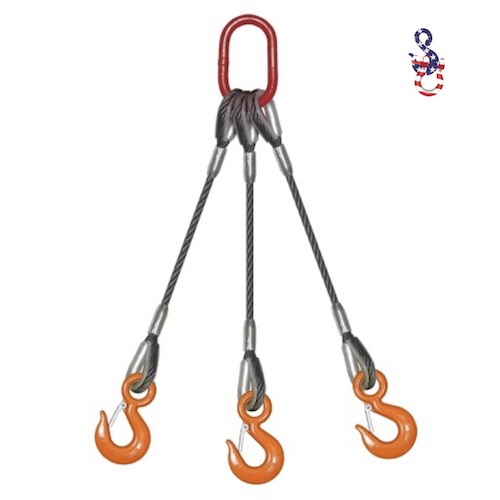

This 5/8″ x 20 ft 3 leg wire rope bridle sling with thimble eyes and latched eye hoist hooks is built from IWRC EIPS wire rope and made in the USA with globally sourced components.

Specifications

  • Rope: 5/8″ 6×19 IWRC EIPS wire rope
  • Reach (length): 20 ft (240″)
  • Legs: 3
  • Top fitting: Oblong master link
  • Grade 80 Alloy Oblong Master Link: 1″ Trade Size (1.10″ Alloy Stock Dia., 4.30″ Inside Width × 7.50″ Inside Length, 26,000 lbs capacity)
  • Leg ends: Thimble eyes with latched eye hoist hooks

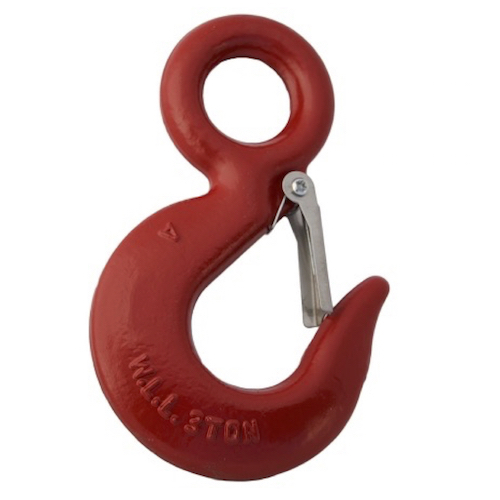

  • Grade 80 Alloy Eye Hoist Hooks w/ Safety Latch (3 Hooks): 4.5 tons capacity (5.75″ Bearing Reach, 7.94″ Overall Length, 1.50″ Throat Opening, 1.56″ Hook Eye I.D.)
  • Capacity at 60°: 10 tons
  • Capacity at 45°: 8.3 tons
  • Capacity at 30°: 5.9 tons
  • Design factor: 5:1
  • Standard: ASME B30.9
  • Tag: Attached metal tag showing capacity
  • Made in: USA with globally sourced components
  • Ships: Typically in 1–2 business days

Choosing this sling

Choose a 3 leg sling for loads with three pick points, such as round tanks or irregular castings. Thimbles protect each eye from wear and crushing. Capacity depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 10 tons at 60° to 5.9 tons at 30°. Do not rig below 30°. The capacity stamped on a hook rates the hook alone; the bridle is rated as listed above.

Need another size, reach or fitting? Contact Us or call the experts at (706) 750-9099.

Rigging gear must be used only by trained, competent people, inspected before each lift and never loaded past its rated capacity. Misuse can cause serious injury or death, and Slings Unlimited disclaims any liability resulting from misuse of its rigging and safety gear.

Weight 75.09 lbs
Sling Length

Number of Legs

Eye Type

Rope Diameter

Add Eye Hoist Hook?
