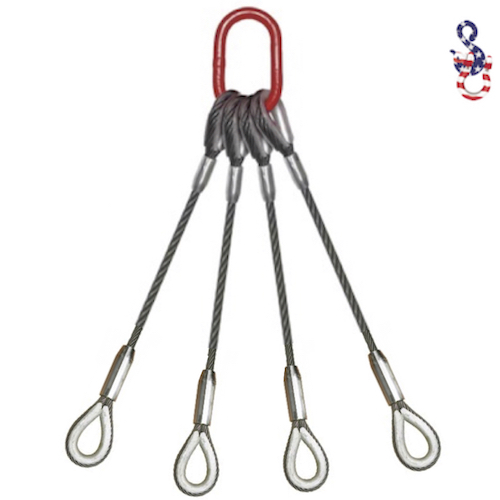

3/4″ X 12 Feet, 4 Leg Bridle w/Thimble Eyes & No Hooks

This 3/4″ x 12 ft 4 leg wire rope bridle sling with thimble eyes (no hooks) is built from IWRC EIPS wire rope and made in the USA with globally sourced components.

Specifications

• Rope: 3/4″ IWRC EIPS wire rope
• Reach (length): 12 ft
• Legs: 4
• Top fitting: Oblong master link
• Leg ends: Thimble eyes, no hooks

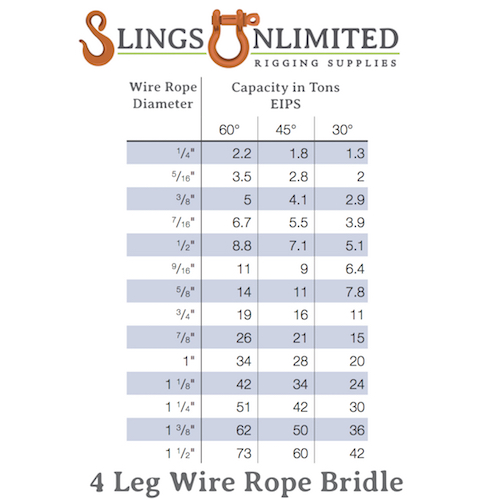

• WLL at 60°: 19 tons
• WLL at 45°: 16 tons
• WLL at 30°: 11 tons
• Design factor: 5:1
• Tag: Attached metal tag showing capacity
• Made in: USA with globally sourced components
• Ships: Typically in 1–2 business days

Choosing this sling

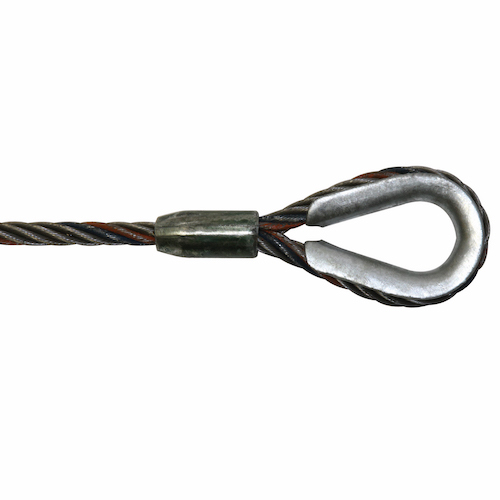

Choose a 4 leg bridle for square or rectangular loads with four pick points. Thimbles protect each eye from wear and crushing. With no hooks, the thimble eyes shackle directly to lifting lugs or padeyes; thimble eyes will not pass through each other, so use a shackle to choke. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 19 tons at 60° to 11 tons at 30°. Do not rig below 30°.

Need another size, reach or fitting? Contact Us or call the experts at (706) 750-9099.

Rigging gear must be used only by trained, competent people, inspected before each lift and never loaded past its rated WLL. Misuse can cause serious injury or death, and Slings Unlimited disclaims any liability resulting from misuse of its rigging and safety gear.
