7/8″ X 12 Feet, 4 Leg Bridle w/Standard Eyes & No Hooks

Capacity in Tons:
26 @ 60 Degrees
21 @ 45 Degrees
15 @ 30 Degrees

$826.55

Made in USATypically ships in 1–2 business days.Questions? Call 706-750-9099

Shipping

Ships by freight. Freight is calculated at checkout.

SKU 23-17812 Category

Share Product :

Facebook
X
LinkedIn
Pinterest

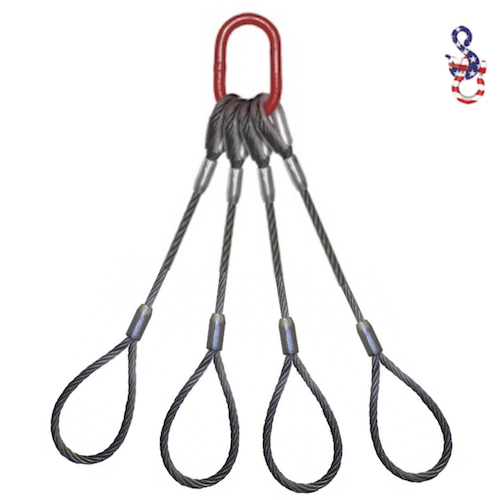

This 7/8″ x 12 ft 4 leg wire rope bridle sling with standard (soft) eyes (no hooks) is built from IWRC EIPS wire rope and made in the USA with globally sourced components.

Specifications

  • Rope: 7/8″ 6×19 IWRC EIPS wire rope
  • Reach (length): 12 ft (144″)
  • Legs: 4
  • Top fitting: Oblong master link
  • Grade 80 Alloy Oblong Master Link: 1-3/4″ Trade Size (1.75″ Alloy Stock Dia., 6.00″ Inside Width × 12.00″ Inside Length, 84,900 lbs capacity)
  • Leg ends: Standard eyes, no hooks

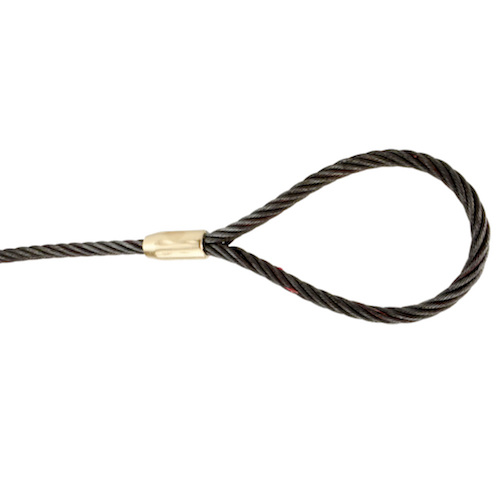

  • Standard Flemish Eye Dimensions (Inside): 7.00″ Inside Eye Width × 14.00″ Inside Eye Length (4 Legs, No Hooks)
  • Capacity at 60°: 26 tons
  • Capacity at 45°: 21 tons
  • Capacity at 30°: 15 tons
  • Design factor: 5:1
  • Standard: ASME B30.9
  • Tag: Attached metal tag showing capacity
  • Made in: USA with globally sourced components
  • Ships: Typically in 1–2 business days

Choosing this sling

Choose a 4 leg bridle for square or rectangular loads with four pick points. Flemish-spliced soft eyes stay flexible and fit over hooks, pins and shackles. Capacity depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 26 tons at 60° to 15 tons at 30°. Do not rig below 30°.

Need another size, reach or fitting? Contact Us or call the experts at (706) 750-9099.

Rigging gear must be used only by trained, competent people, inspected before each lift and never loaded past its rated capacity. Misuse can cause serious injury or death, and Slings Unlimited disclaims any liability resulting from misuse of its rigging and safety gear.

Weight 135.3 lbs
Add Eye Hoist Hook?

Rope Diameter

Eye Type

Number of Legs

Sling Length
