1″ X 8 Feet, 3 Leg Bridle w/Standard Eyes & Hooks

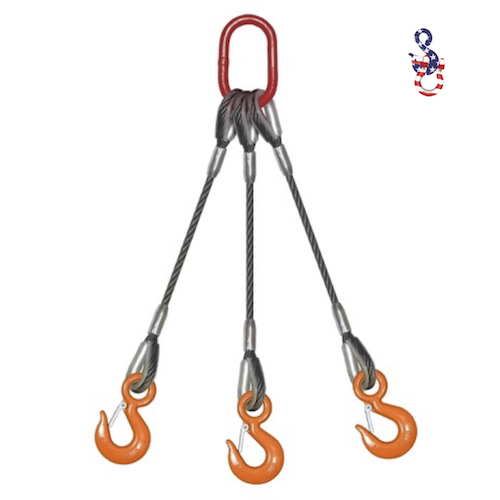

This 1″ x 8 ft 3 leg wire rope bridle sling with standard (soft) eyes and latched eye hoist hooks is built from IWRC EIPS wire rope and made in the USA with globally sourced components.

Specifications

• Rope: 1″ IWRC EIPS wire rope

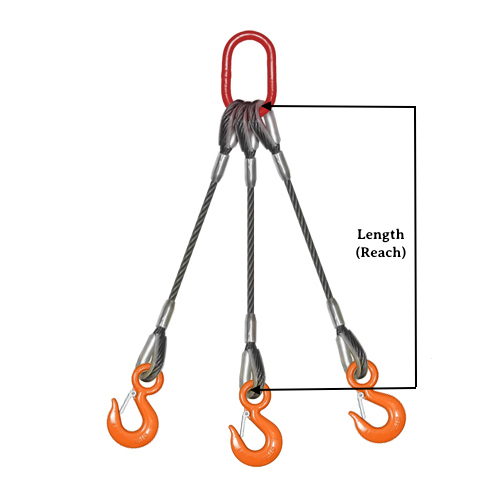

• Reach (length): 8 ft
• Legs: 3
• Top fitting: Oblong master link

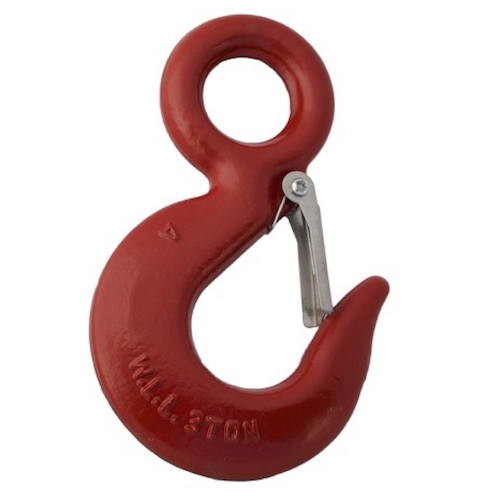

• Leg ends: Standard eyes with latched eye hoist hooks
• WLL at 60°: 26 tons
• WLL at 45°: 21 tons
• WLL at 30°: 15 tons
• Design factor: 5:1
• Tag: Attached metal tag showing capacity
• Made in: USA with globally sourced components
• Ships: Typically in 1–2 business days

Choosing this sling

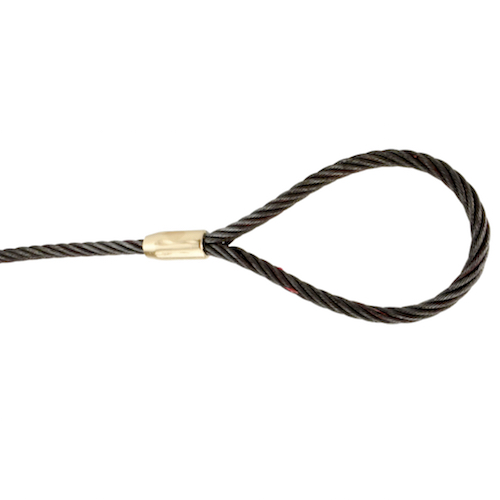

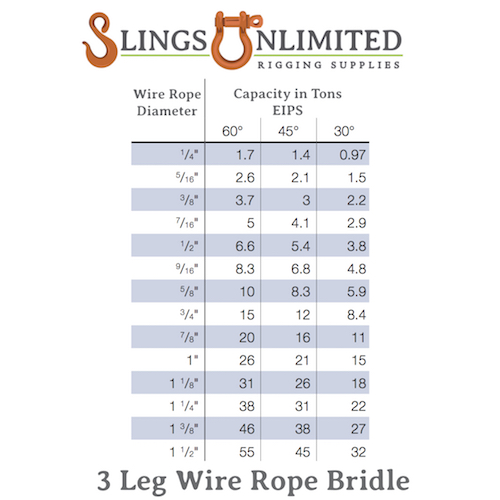

Choose a 3 leg sling for loads with three pick points, such as round tanks or irregular castings. Flemish-spliced soft eyes stay flexible and fit over hooks, pins and shackles. WLL depends on the sling angle, measured from horizontal: flatter legs carry more tension, so capacity drops from 26 tons at 60° to 15 tons at 30°. Do not rig below 30°. The WLL stamped on a hook rates the hook alone; the bridle is rated as listed above.

Need another size, reach or fitting? Contact Us or call the experts at (706) 750-9099.

Rigging gear must be used only by trained, competent people, inspected before each lift and never loaded past its rated WLL. Misuse can cause serious injury or death, and Slings Unlimited disclaims any liability resulting from misuse of its rigging and safety gear.
