7/8″ X 12′ Wire Rope Sling w/One Standard Eye & One Thimble Eye

7/8″ X 12′ Wire Rope Sling w/One Standard Eye & One Thimble Eye

7/8″ IWRC EIPS Wire Rope Choker X 12 Feet w/One Standard Flemish Eye & One Heavy-Duty Thimble Eye

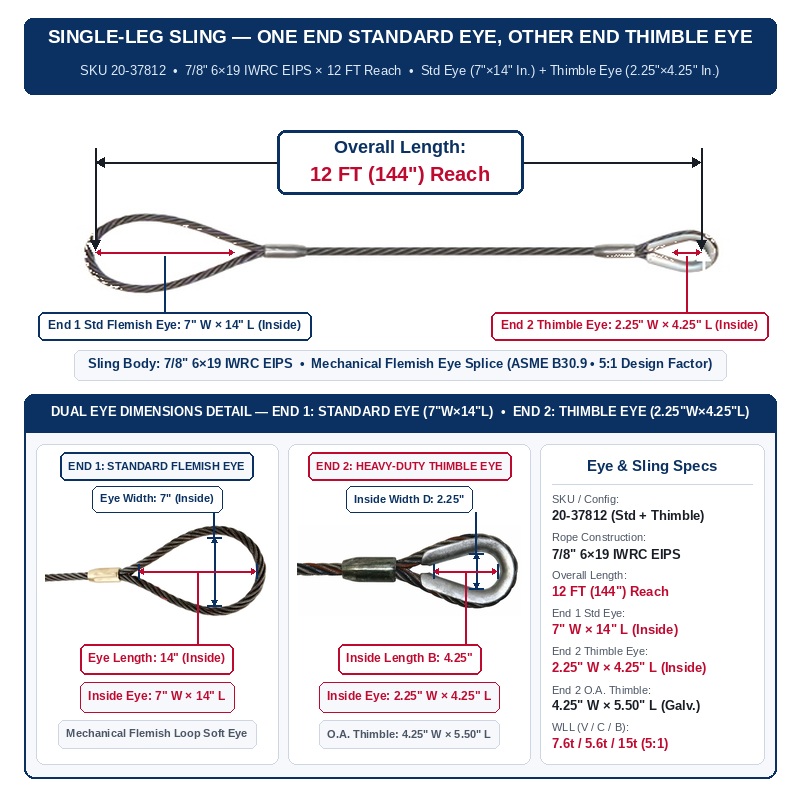

The 7/8″ x 12′ single leg wire rope sling with one standard Flemish eye and one heavy-duty thimbled eye combines the best of both terminations. The thimbled eye (2.25″ inside width × 4.25″ inside length) protects the bearing point on the crane hook or shackle from wear and deformation, while the standard Flemish soft eye (7.00″ inside width × 14.00″ inside length) easily reeves through or around the load for fast, secure choker and basket hitches. Manufactured from 7/8″ 6×19 IWRC EIPS wire rope with mechanical Flemish eye splicing for maximum strength and durability in demanding construction, industrial, and rigging applications.

Specifications

• Wire Rope Construction: 7/8″ 6×19 IWRC EIPS (5:1 Design Factor, ASME B30.9)
• Overall Length (Reach): 12 FT (144″)
• End 1 Termination (Standard Flemish Eye): 7.00″ Inside Eye Width × 14.00″ Inside Eye Length
• End 2 Termination (Heavy-Duty Galvanized Thimble Eye): 2.25″ Inside Width × 4.25″ Inside Length (4.25″ Overall Width × 5.50″ Overall Length, FF-T-276 Type 3)
• Rated Working Load Limits (1-Leg): 7.6 Tons Vertical / 5.6 Tons Choker / 15.0 Tons Vertical Basket

Working Load Limit and Safety

The Design Factor for wire rope slings is a 5:1 ratio, meaning the breaking strength of the sling is five times higher than the rated Working Load Limit (W.L.L). Per the Wire Rope Users Manual, a design factor is necessary to allow for conditions such as wear, abrasion, damage, and variations in loads which are not readily apparent. Although wire rope slings have a design factor, the user should never exceed the rated Working Load Limit.

All of our single leg eye and eye slings include an attached metal tag displaying capacity.

Slings Unlimited strives to manufacture and sell the highest quality rigging and safety gear. However, use of the gear is dangerous if not used correctly by competent trained professionals. Misuse of the rigging and safety gear can result in serious injury up to and including loss of life. Slings Unlimited disclaims any liability resulting from the misuse of its rigging and safety gear.
